Timken® FSAF 22218 FSAF22218 TORR
Send NoImagePrint
  1. pin-int

Timken®
FSAF 22218

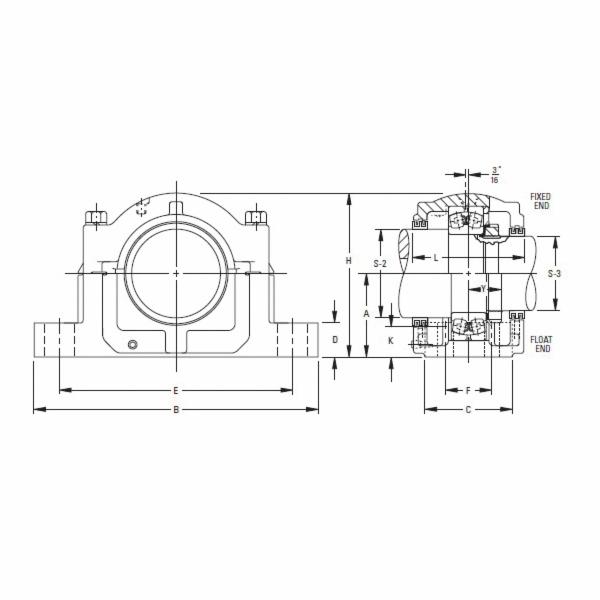

Timken® FSAF 22218 SAF222/SAF223 Split Pillow Block Housed Unit, 4-1/8 in Dia Bore, 11 in L Bolt Center-to-Center, 4 in Base to Bore Centerline, 13-3/4 in OAL x 7-3/4 in OAH

  • Manufacturer: Timken
  • Brand: Timken®
  • BSC Item#: FSAF22218 TORR
  • MPN: FSAF 22218
  • UPC: 087796074996
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Timken® Split Pillow Block Housed Unit, Series: SAF222/SAF223, 4-1/8 in Bore, 11 in Bolt Center-to-Center Length, 4 in Base to Bore Centerline, 13-3/4 in Overall Length, 6-1/4 in Overall Width, 7-3/4 in Overall Height, Four-Bolt Base Mounting, Straight Bore, 3-7/8 in Base Width, Press Fit Locking Device, Triple Ring Seal, 68100 lb Dynamic/87800 lb Static Load, Cast Iron

  • Split construction for convenient assembly and disassembly
  • These units include pry tool slots and the exclusive Pry-Lug fulcrum, which simplifies bearing inspection, service and replacement
  • Caps can be removed easily and quickly without damage to the bearing or housing
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_AN_16_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_FSAF_22218_Specification_Sheet.pdf
Application      :      Conveyors, Ball Mills, Casters, Rolling Mills and Heavy Movable Structures
