Thomson®
8110-448-055

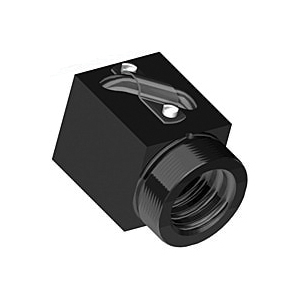

Thomson® 8110-448-055 Type A Non-Preloaded Square Ball Nut With Load Lock, 1 in Dia Screw, 1/4 in, 1 Circuits

  • Manufacturer: Thomson Industries
  • Brand: Thomson®
  • BSC Item#: 8110-448-055 THOM
  • MPN: 8110-448-055
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

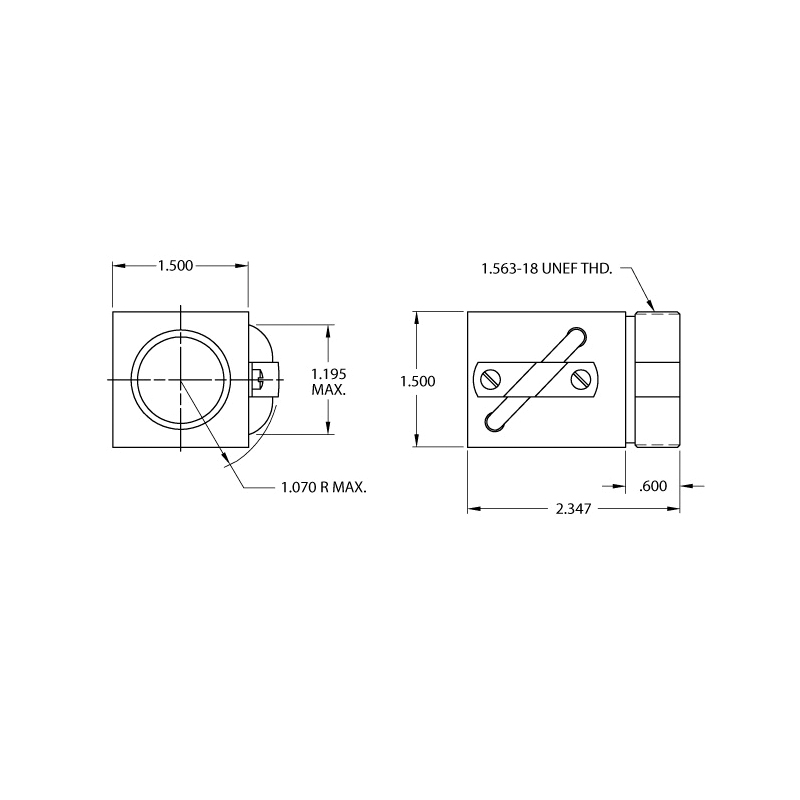

Thomson® Ball Nut, Type A Non-Preloaded Square, 1 in Screw Diameter, 1 Circuits, 2.347 in Nut Length, 1.563-18 UNEF Thread, Right Thread, 1/4 in Thread Lead, 1612 lb Dynamic/15300 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide

  • 300 deg F operating temperature
  • Nut only, screw sold separately
  • 1-1/2 in W nut
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Thomson_5703263_Catalog.pdf
Standard/Approvals      :      RoHS Compliant
Application      :      Industrial and Transport Grade Applications
