Browning®
1055243

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

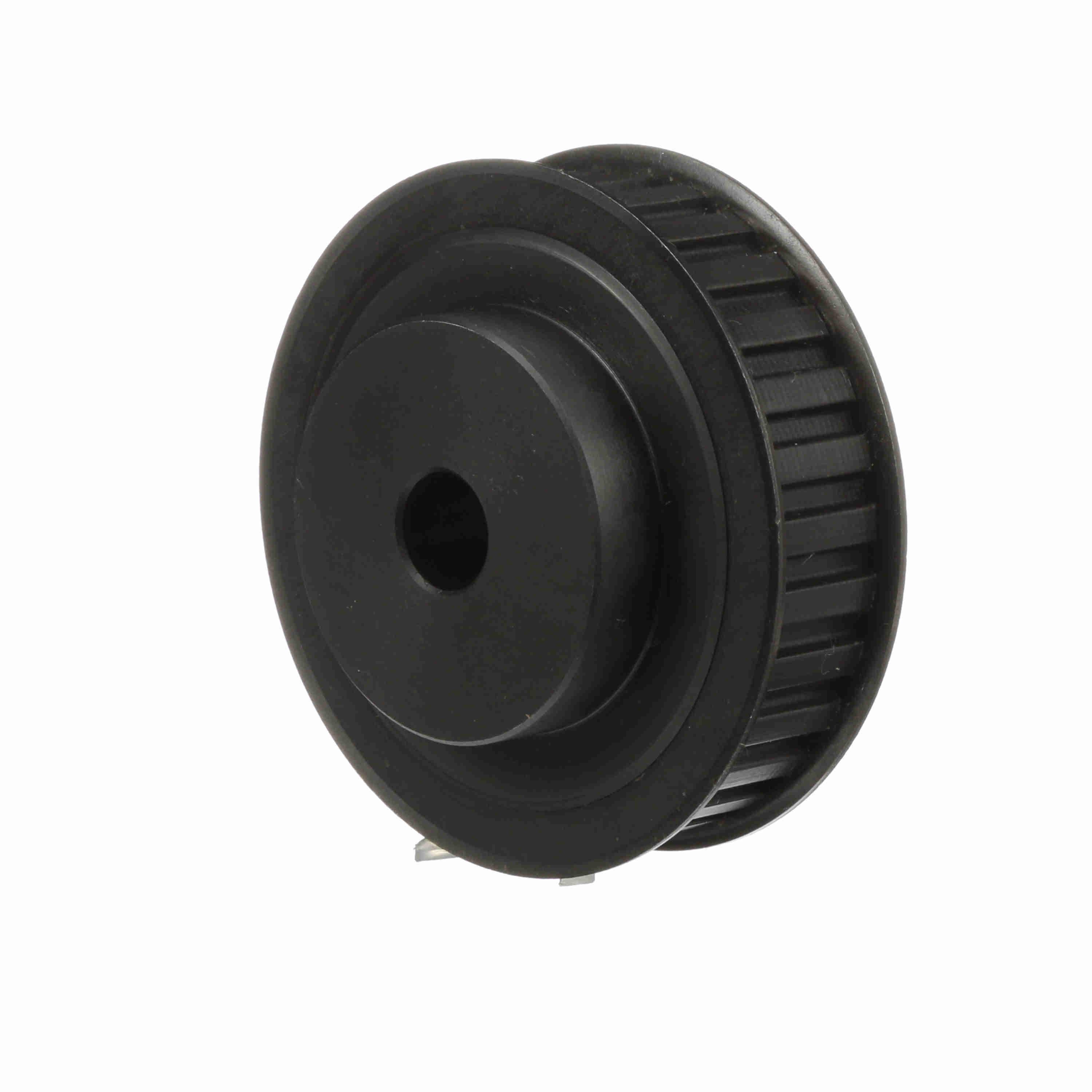

Browning® Gearbelt® Synchronous Timing Pulley, Type 2, 58 to 1-3/8 in Bore Dia, 3.551 in Outside Dia, 3.581 in Pitch Diameter, 30 Grooves, 3/8 in Pitch, 1 in Face Width, 3-13/16 in Flange Dia, 2-1/4 in Hub Dia, 1/2 in Hub Projection, MPB Bushing, 1-1/2 in OAL, For Use With: 3/4 in W L075 Type Belt

• High modulus strength member, needs minimum take-up
• Freedom from initial belt tension, reduces bearing loads, increases life
• Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
• Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
• Less heat, because Gearbelt® drives generate virtually no friction
• No lubrication required
• Wide load capacity range
• Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
• Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
• Cooler running means longer life
• Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
• Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
• High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
• Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
• Assures less vibration and Smoother , quieter performance
• Notched belts provide higher horsepower than wrapped belts
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
