Browning®
1069699

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

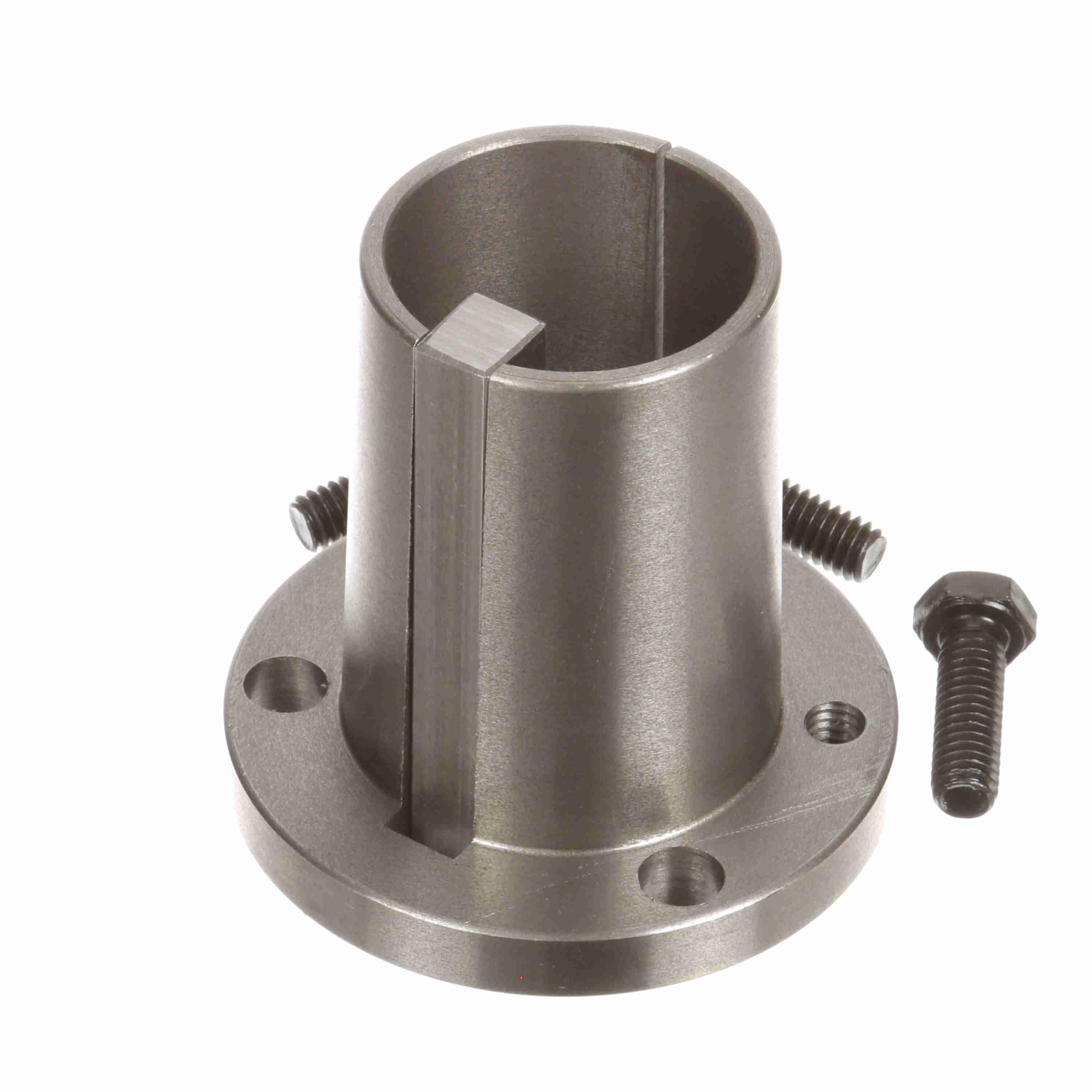

Browning® Split Taper Bushing, 1-9/16 in Bore Dia, 1.793 in Small End/1.9375 in Large End Barrel Dia, 2-7/16 in Bolt Circle, 3 in Flange Dia, 13/32 in Flange Thickness, 3 Bolt Holes, 5/16 x 1 in Screw, For Use With: Browning® Multiple Groove Sheave, 2-15/16 in Overall Length, 3/8 x 3/16 in Keyway, Sintered Steel

• Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
• Highest torque carrying capacity in the Browning® bushing product line
• Double split barrel assures true concentricity grips the shaft with positive clamp fit
• Mating Spur Gears must have same pressure angle and pitch
• Standard Gear Rack - 1. Manufactured From Mild Steel, 2. 14 1/2 Pressure Angle - 32 to 3 DP, 3. 20 Pressure Angle - 20 to 4 DP, 4. 4 and 6 FT Available from Stock, 12 FT May Be Available on Some Sizes
• Modification Options Available - 1. Cut to Desired Length, 2. Milled and Matched Ends, 3. Drilled or Drilled and Tapped Holes for Mounting
• 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1071505_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3694726_Specification_Sheet.pdf
