Sealmaster®
709987

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

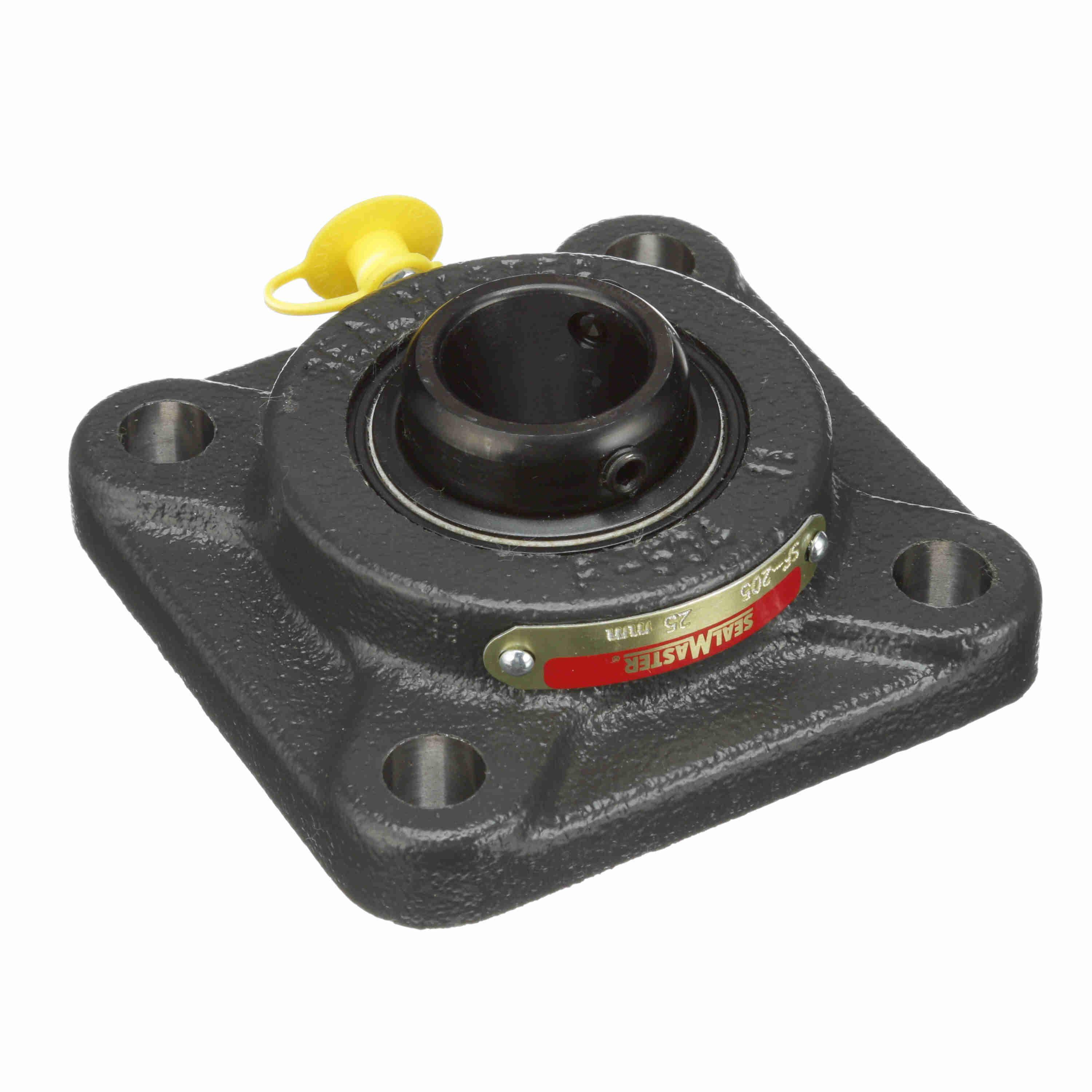

Sealmaster® Ball Bearing Unit, Non-Expansion Standard-Duty Round/Straight Bore, Series: SF Series, 25 mm Bore, 69.9 mm Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 76.2 mm Overall Length/Diameter, 32.5 mm Overall Depth, 76.2 mm Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Felt Seal, 12459 N Dynamic/7344 N Static Load, 6350 rpm Maximum, 121 deg C, Uncoated

• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Wide black oxided outer ring with direct lubrication inlet hole
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700447_Catalog.pdf
