Micron®
64-116833-B888

In addition to standard NEMA frame sizes, Micron® NemaTRUE™ planetary gearheads are now available in three metric sizes 60, 90 and 115 mm and with the innovative RediMount™ adapter kit, which allows for quick and error-free mounting to any servo motor. Micron® TRUE Planetary™ gearing technology allows for highly efficient and precise torque multiplication for servo motor applications. The NemaTRUE™ has many ratios in stock for immediate delivery.

Micron® TRUE Planetary™ Spur Gearhead, Cyclical-Duty, Series: NemaTRUE™, 5:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 5/8 in Output, 800 rpm Output Maximum Speed, 4000 rpm Input Maximum Speed, 325 in-lb, 13 arcmin Backlash, 0.875 in L x 0.25 in W x 0.706 in H Keyway, 93 % Efficiency, Grease Lubrication, In-Line Vertical Mount, Anodized Aluminum, 4.53 in W x 4.53 in H

• RediMount™ system provides error-free motor installation
• Sealed deep groove ball bearings provide high radial load carrying capability
• HRC 55-60 steel gears provide superior wear resistance and increased backlash integrity
• Anodized aluminum housing reduces weight and prevents corrosion

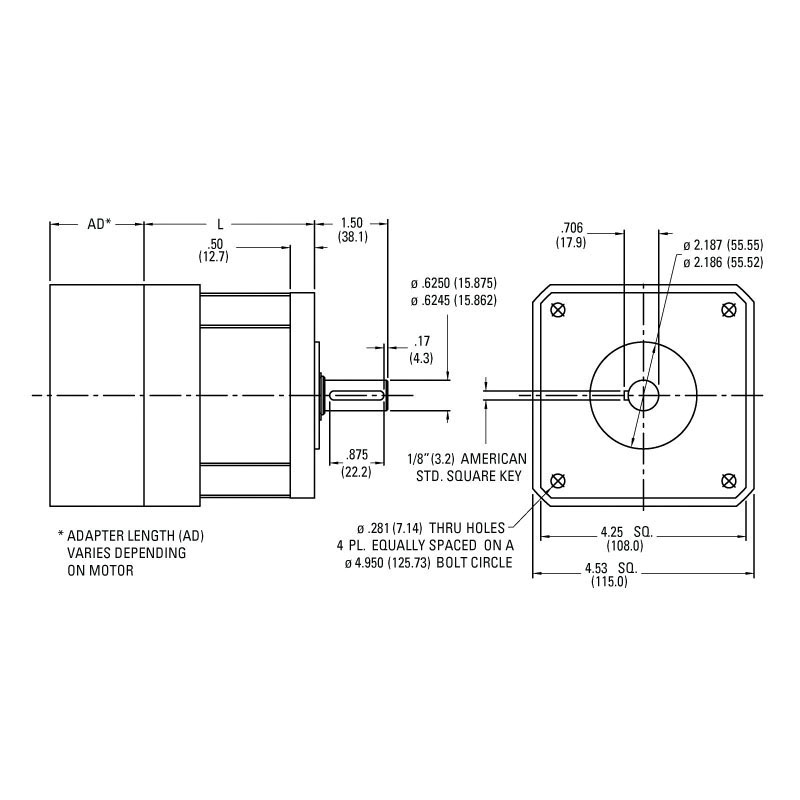

• Adapter length (AD) may vary depending on motor
• Stainless steel output shaft
• Size 42 frame
• RM115-215 special RediMount™ kit
