Browning®
767168

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

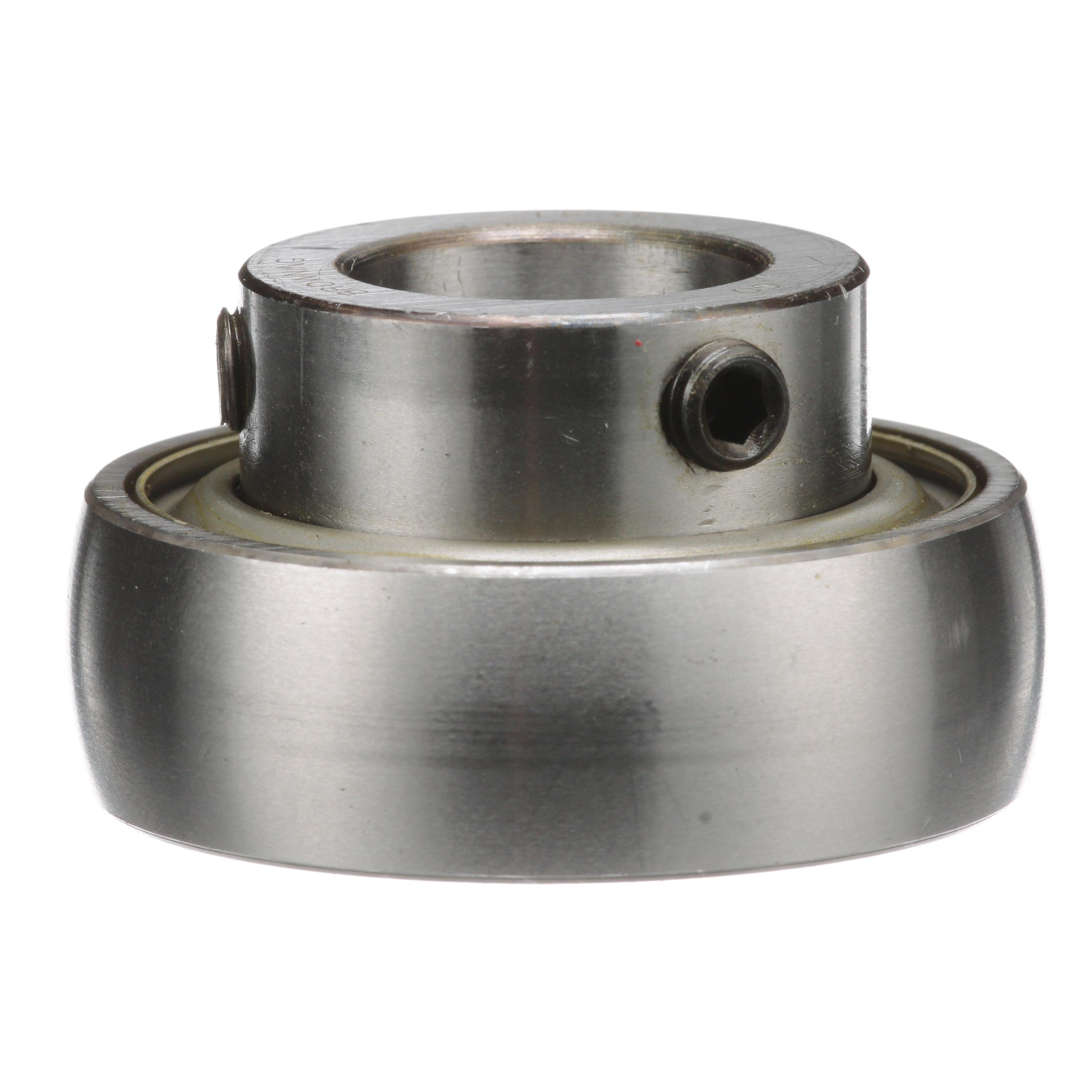

Browning® Ball Bearing Insert, Light Duty Straight Bore, Series: LS 100, 3/4 in Bore, 1.8504 in OD, 1-1/16 in Width, Double Seal Closure, 2611 lb Dynamic/1444 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Plastic Cage, 4000 rpm Maximum, -20 to 200 deg F, Black Oxide Coated

• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Lithium complex NLGI #2 grease with an EP additive
• Spherical outer diameter
• Non-relubricatable
• Without Snap Ring
• Spherical O.D. narrow inner ring bearing insert with no lubrication hole._x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_LS124_Specification_Sheet.pdf
