Climax
C170E-193

Single-taper, self-centering design with mounting flange for use in through-bored components with smaller pitch/outside diameters. Mounted component remains fixed axially during installation. View Catalog Page

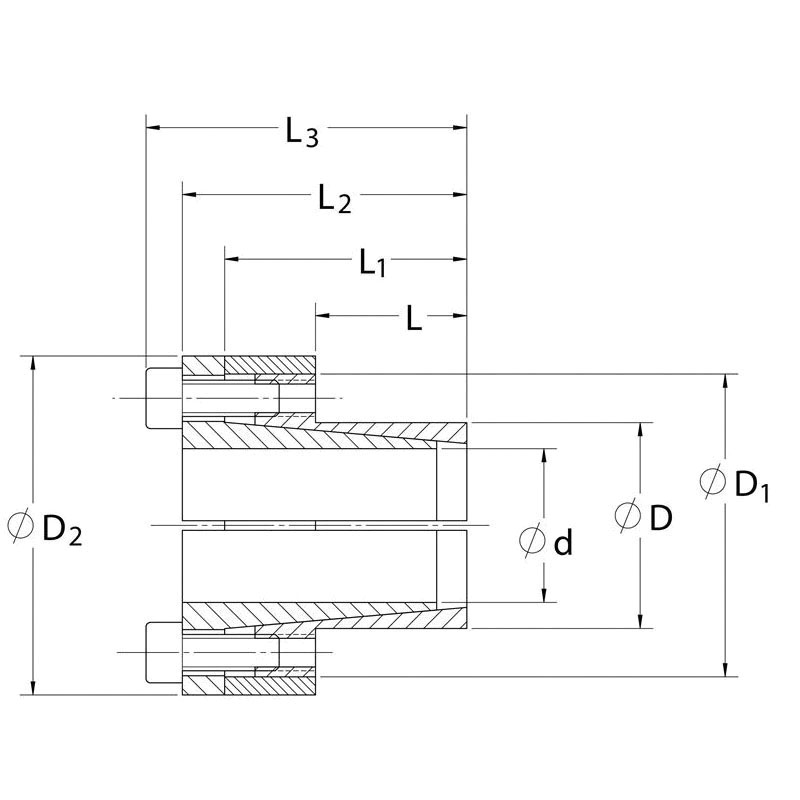

Climax Keyless Locking Assembly, Series: C170, 1-15/16 in Bore Dia, 3.386 in Outside Dia, 3.272 in Hub Dia, 1495 ft-lb Transmissible Torque, 18521 lbf Transmissible Thrust, 14312 psi Shaft Contact Pressure, 10836 psi Hub Contact, M8x22 Screw, 3.071 in Overall Length, 0 to 400 deg F, Steel

• Single-taper, self-centering design with mounting flange for use in through-bored components with smaller pitch/outside diameters
• Mounted component remains fixed axially during installation
• Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
• As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
• No key means infinite radial and axial positioning for precise alignment and timing
• Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration
