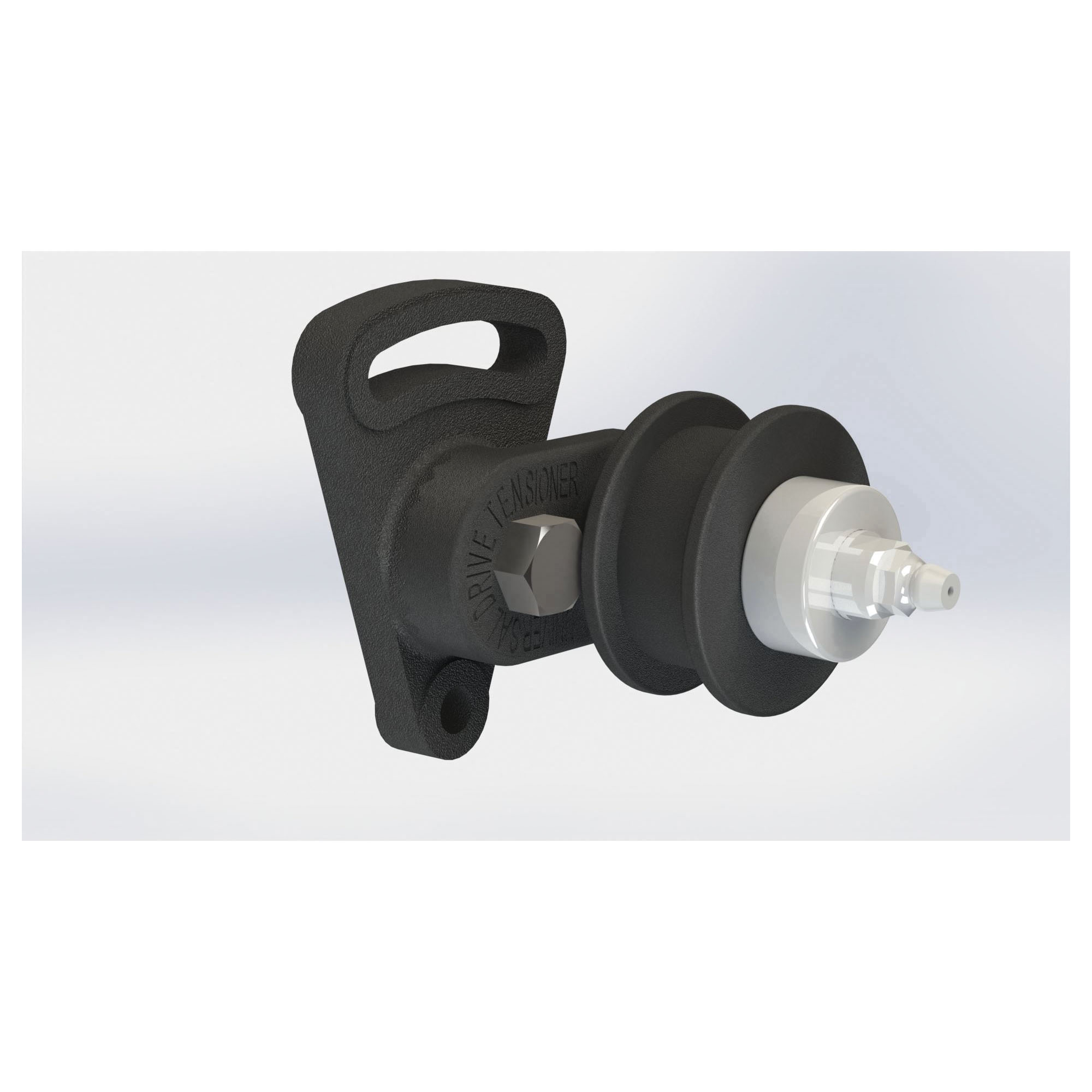

Brewer Universal Drive Tensioner SM-3/4-10
Brewer Universal Drive Tensioner SM-3/4-10 S Series Medium Base Mount Drive Tensioner, For Use With Model NO2, NO3 and NO4 1 in Dia 3/4-10 Thread Idler Shafts, 3/8 in Bolt, Cast Iron
- Manufacturer: Brewer Machine and Gear
- Brand: Brewer Universal Drive Tensioner
- BSC Item#: SM-3/4-10 BREW
- MPN: SM-3/4-10
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
The Universal Drive Tensioner base mounted series, through the use of a rotating arm and adjusting slot, permits easy, accurately controlled tensioning at any point on a 360 deg arc. Thereby, increasing the efficiency and smoothness of operation in chain and belt drives. An added feature is a serrated pad to prevent slippage. Two-bolt mounting of the base makes it easily adaptable to most machine frames.
Brewer Universal Drive Tensioner Drive Tensioner, Medium Base Mount, Series: S Series, For Use With: Model NO2, NO3 and NO4 1 in Dia 3/4-10 Thread Idler Shafts, 3/8 in Bolt, Cast Iron, 4-5/8 in L x 1-7/8 in W
- Permits easy, accurately controlled tensioning at any point on a 360 deg arc
- Serrated pad to prevent slippage
- 2-bolt mounting of the base makes it easily adaptable to most machine frames
- 3-1/2 in bolt center-to-center
Catalog
| Application | : | For use with a wide array of sprocket and pulley idlers |
