Browning®
1072115

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

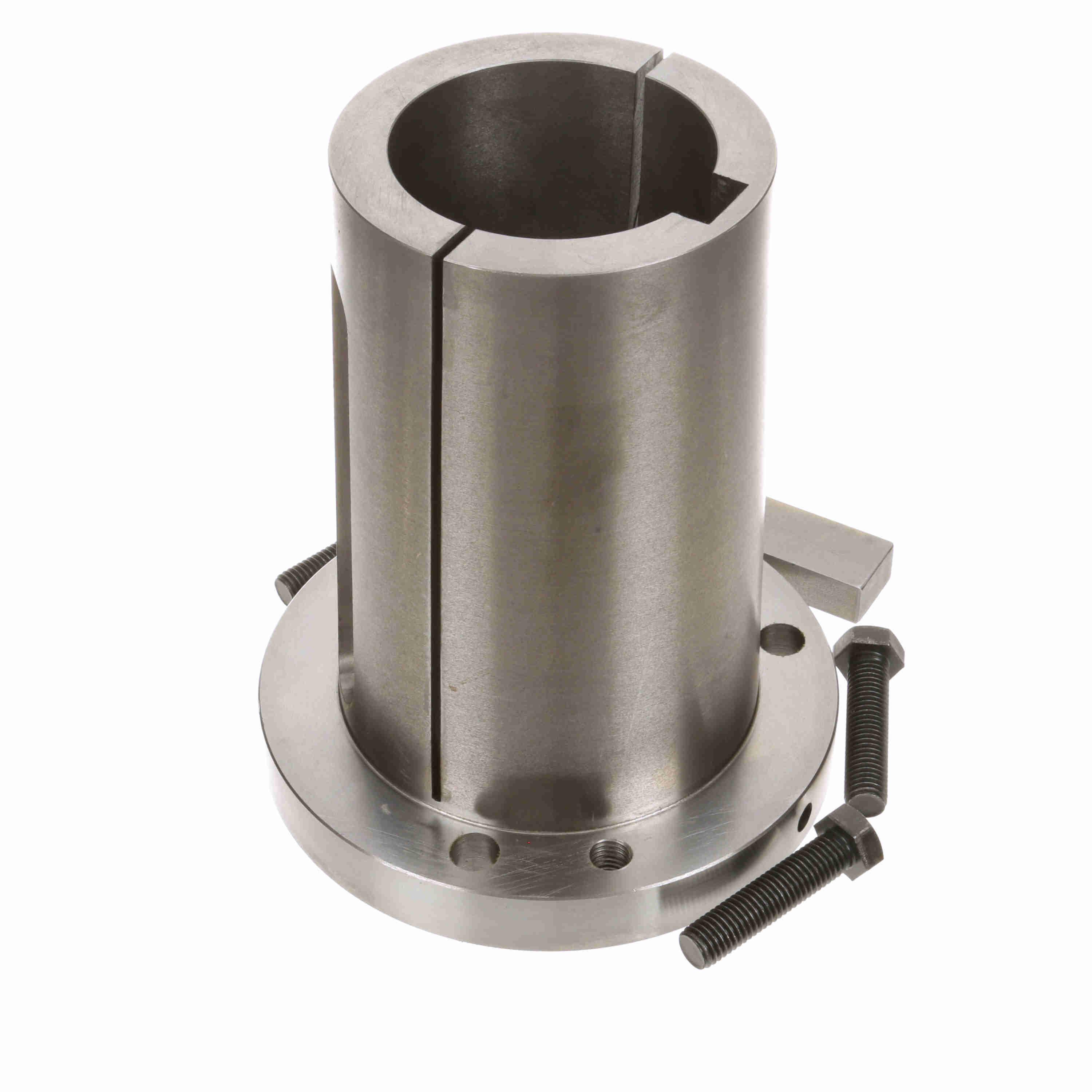

Browning® Split-Taper Bushing, Type U2, 4 in Bore, 5.461 in Dia Small End/6 in Dia Large End Barrel Diameter, 7 in Diameter Bolt Circle, 8-3/8 in Diameter Flange, 1.063 in Flange Thickness, 3 Bolt Holes, 5/8 x 2-3/4 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 10-1/8 in Overall Length

• Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
• Highest torque carrying capacity
• Double split barrel assures true concentricity grips the shaft with positive clamp fit
• 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1071505_Installation_Manual.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_G10MM_Specification_Sheet.pdf
