Browning®
1228329

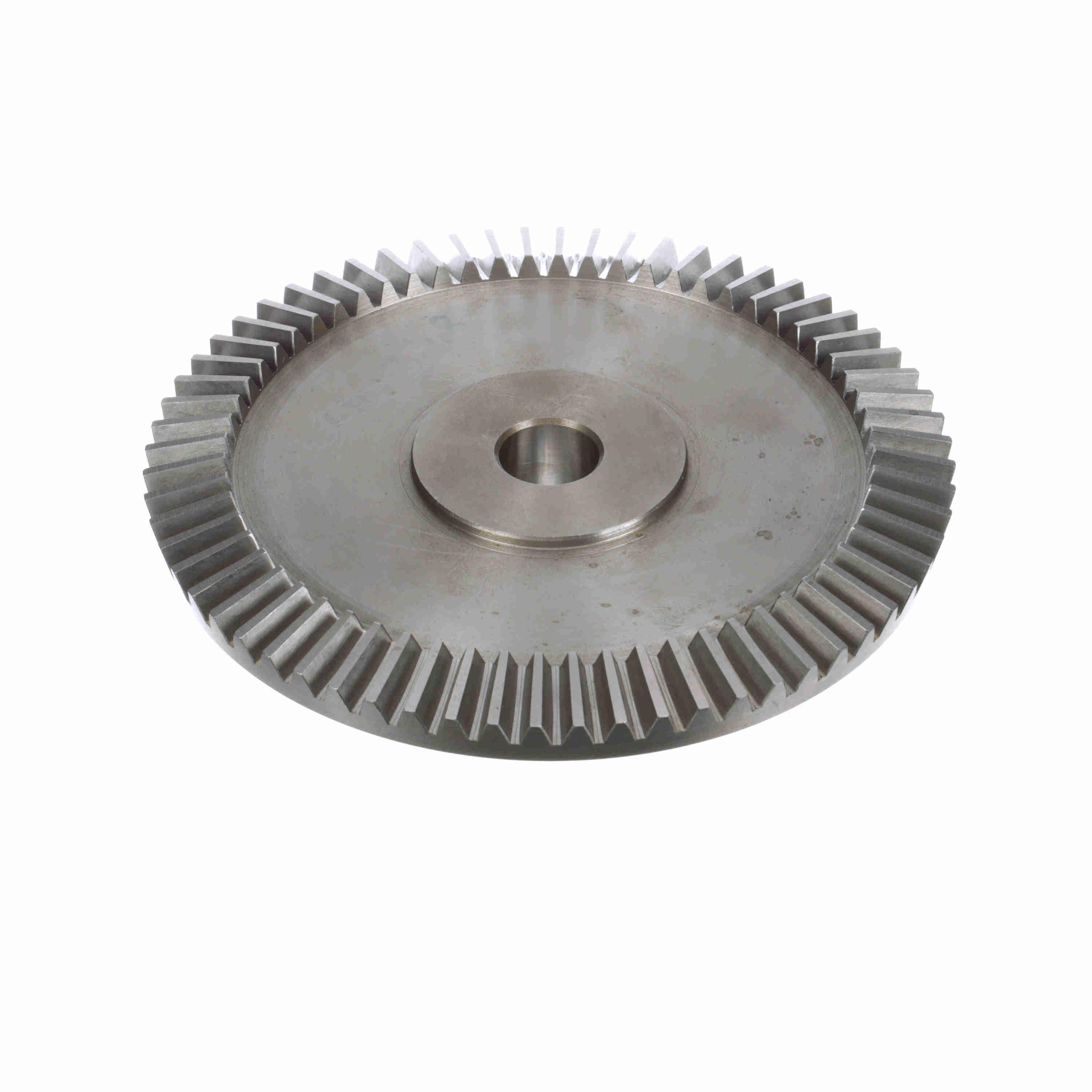

Browning® Bevel Gear, MPB Straight Tooth, 1 to 1-13/16 in Bore, 4:1 Gear Ratio, 64 Teeth, 8 Diametral Pitch, 8 in Pitch Diameter, 0.84 in Face Width, 2-3/4 in Diameter Hub, 1-1/4 in Hub Projection, 1-7/8 in Overall Length, 20 deg Pressure Angle, Steel

• Browning Gears are rated in accordance with AGMA standards
• Modification Options Available - 1. Cut to Desired Length, 2. Milled and Matched Ends, 3. Drilled or Drilled and Tapped Holes for Mounting
• Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
• Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
• Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral

• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_YSB20B2020_Catalog.pdf
