Martin 3 3V 365 TB

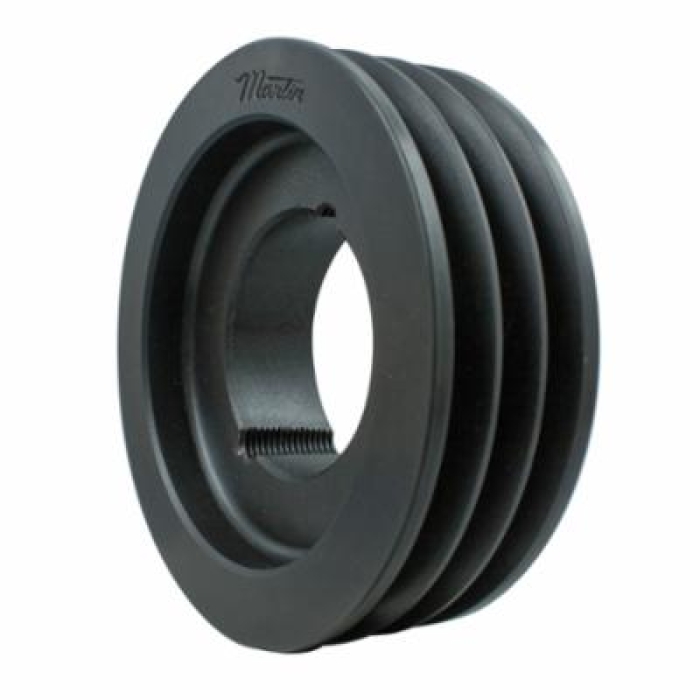

Martin Hi-Cap® 3 3V 365 TB Solid Type A-1 Wedge Stock Sheave, 1/2 to 1-5/8 in TB Bushed Bore, 3.65 in OD, 3 Grooves, 3.6 in Dia Pitch, 1-1/2 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 3/3V3.65TL
- MPN: 3 3V 365 TB
- UPC: 697950155012
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 65 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Solid Type A-1, TB Bushed Bore, 1/2 to 1-5/8 in Bore, 3.65 in OD, 3.6 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, 161 Bushing, 1-1/2 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel
| Type | : | Solid Type A-1 |
| Bore Type | : | TB Bushed |
| Bore Diameter | : | 1/2 to 1-5/8 in |
| Outside Diameter | : | 3.65 in |
| Pitch Diameter | : | 3.6 in |
| Number of Grooves | : | 3 |
| Face Width | : | 1-1/2 in |
| Bushing Type | : | 161 |
| Overall Length | : | 1-1/2 in |
| Suitable For Use With | : | 3V-Cross Section V-Belts |
| Material | : | Steel |
