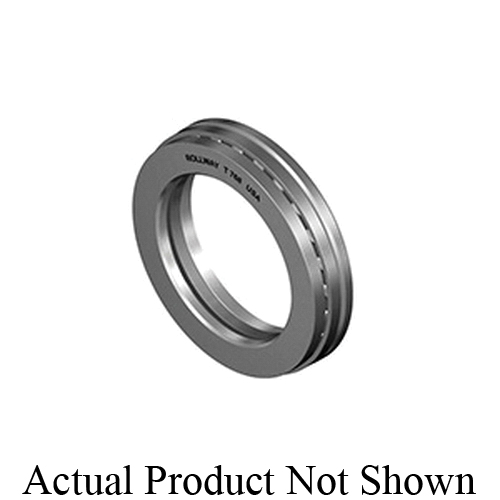

Rollway® T-734
Rollway® T-734 700 Heavy Duty Single Acting Unmounted Cylindrical Roller Thrust Bearing, 4 in Dia Bore, 7 in OD, 1-3/4 in W, 111100 lb Static Load
- Manufacturer: Regal Rexnord
- Brand: Rollway®
- BSC Item#: T743 ROLW
- MPN: T-734
- UPC: 637410036314
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Rollway®cylindrical thrust bearings utilize crowned cylindrical rolling elements. These are separated by a machined brass roller riding retainer (cage) which are contained within precision ground shaft and housing plates. These bearings are intended for axial loads (load parallel to the axis of rotation). They are designed as medium or heavy duty series. Either series is available in three configuration types including double acting, self aligning and the most widely used single acting variety.
Rollway® Cylindrical Roller Thrust Bearing, Heavy Duty Single Acting Unmounted, Series: 700, 4 in Bore Dia, 7 in Outside Dia, 1-3/4 in Width, Thrust Direction: Single, 111100 lb Static Load, Case Carburized Steel Bearing, 980 rpm Grease/1950 rpm Oil Maximum
- Precision ground shaft plate
- Matched precision ground rollers
- Machined brass roller riding retainer
- Precision ground housing plate
- Crowned rollers with sphered ends
Catalog
| Application | : | Aggregate, Cement, Cranes, Hoists, Metals, Minerals, Mining, Oil, Gas, Pulp and Paper Industries |
