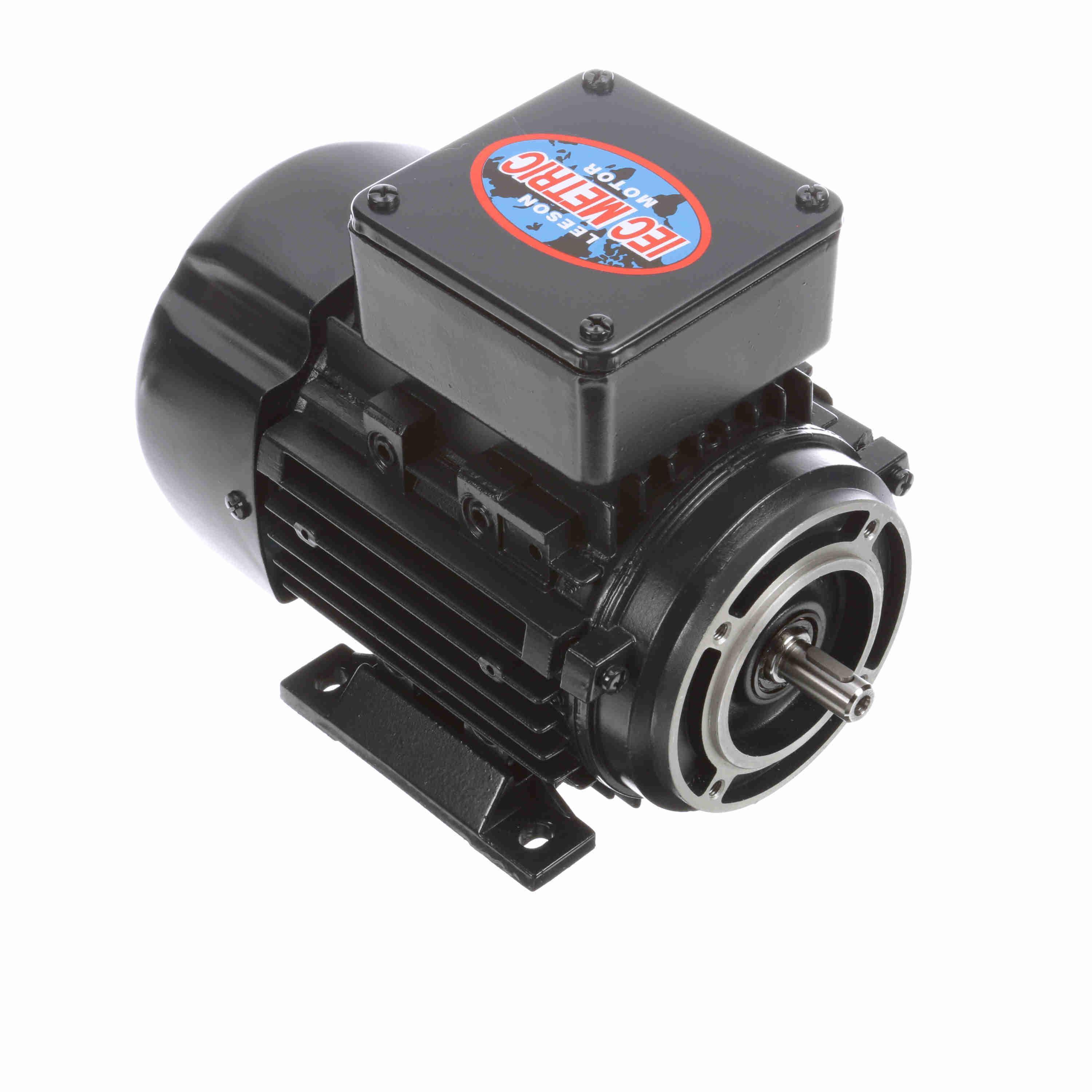

LEESON®
192038.00

Metric dimensioned, AC motors meeting North American performance standards, including 1.15 service factor and premium efficiencies. For replacement use on machine tools, textile machinery and other equipment with metric dimensions but requiring the heavy duty torque and performance characteristics of motors designed for use in North America. IP55 weatherproof enclosures, 60/50 Hz interchangeability (60 Hz 230/460 VAC and 50 Hz 200/400 VAC), dual stamped nameplates, CE mark, and F3 conduit box location. Kits are available for field conversion from B3 to B3/B5 or B3/B14. Motors are available in one of two frame constructions: aluminum or cast iron. Aluminum frame models are designated with a 192000 series catalog number; cast iron models are 193000 series.

LEESON® IEC Metric Motor, High Efficiency Rigid Base, Series: 192000, Fan & Blower Motors Application, 1/2 hp, 230/460 VAC, 1.8/0.9 A, 50/60 Hz Frequency, 1695/1380 rpm Speed, Totally Enclosed Fan Cooled Enclosure, D71C Frame, Reversible Rotation, 1.149 Service Factor, 61.2 ft-lb Torque, 40 deg C, Insulation Class: Class F, Aluminum, 240 mm L x 136 mm W x 191 mm H Dimensions

• Aluminum frame and cast iron frame construction
• Inverter rated IRIS® insulation system on cast iron AC models
• 3 years warranty on premium efficiency models
• 1 year warranty on DC and AC standard efficiency models
• IP55 weatherproof enclosure allows for use in a wide range of applications
• Drain hole locations in four quadrants can be drilled out for multi-position condensate drainage
• Captive shaft keyway
• High efficiency design utilizes low loss steel laminations for optimum power and performance
• Special design steel fan cover and low noise fan maximize airflow efficiency
• External grounding provision
• Multi-mount repositionable feet allow for three conduit box positions (F2, F1, F3)
