Fafnir®
5310WD

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.

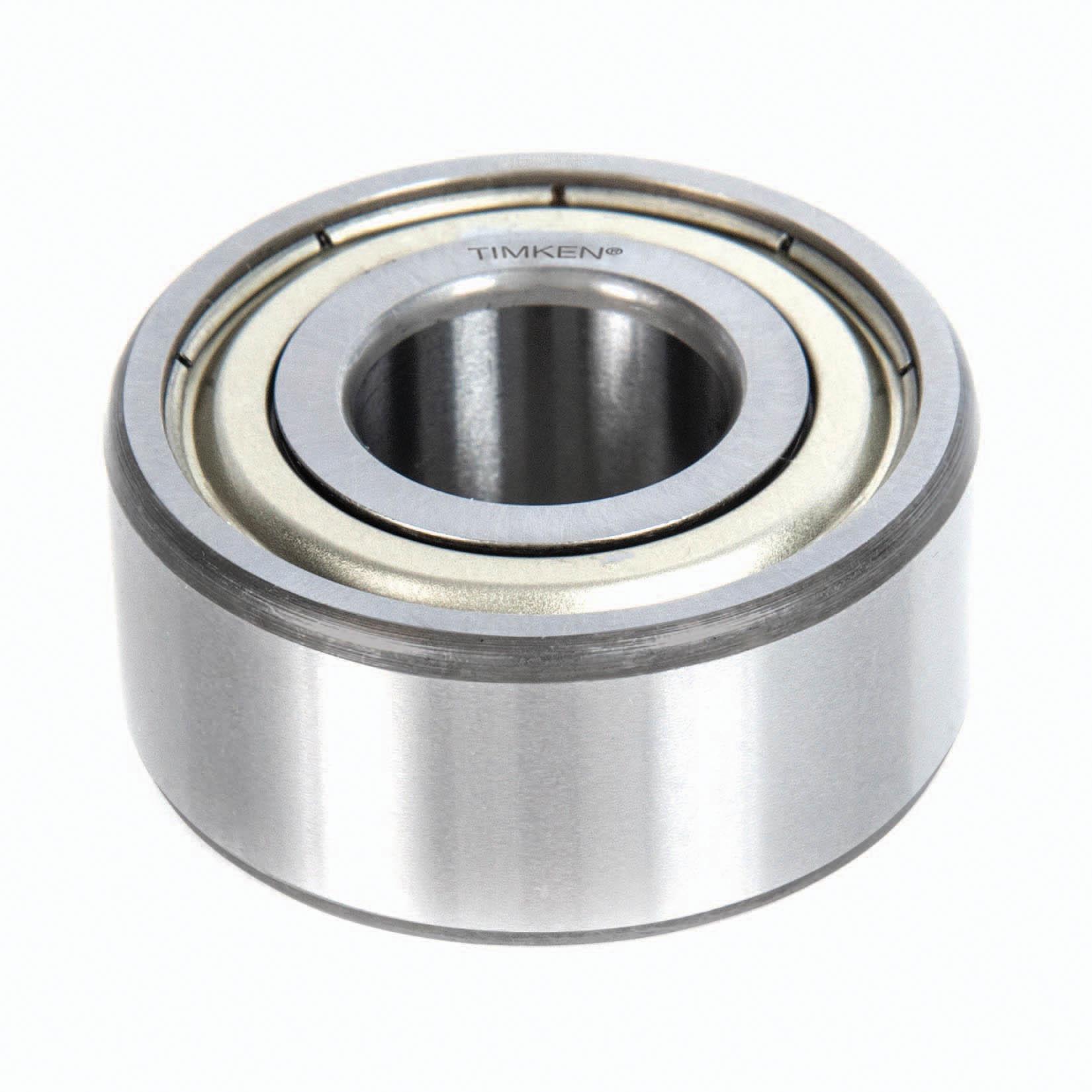

Timken® Fafnir®, 5310WD, Angular Contact Ball Bearing, Medium Duty, Series: 5300, 50 mm Bore, 110 mm OD, 2 Rows, 44.4 mm Width, 30 deg Contact Angle, Single Shield Closure, 25700 lb Dynamic/22000 lb Static Load, Steel Bearing, Metal Seal, 3750 rpm Maximum, -50 to 120 deg C, Uncoated

• Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
• Features the same bores and outside diameters as corresponding bearings in the 300 series single-row radial type
• Double-row angular contact ball bearings meet the demand for increased axial and radial rigidity in applications where the design limits space
• These double-row series bearings are not pre-lubricated

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_5210W_C1_Catalog.pdf
