DICHTOMATIK
310X350X18VSF

Dichtomatik 310X350X18VSF SF Oil Seal, 12.205 in ID x 13.78 in OD x 0.709 in W, Fluorocarbon Lip, 80 Durometer, Import

  • Manufacturer: Freudenberg Sealing Technologies
  • Brand: DICHTOMATIK
  • BSC Item#: 310X350X18VSF TCOM
  • MPN: 310X350X18VSF
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Oil seals or shaft seals cover a wide variety of applications including axles, engines, trailers and high-pressure environments. Generally oil seals are used to seal around a rotating shaft and provide protection from dirt intrusion while retaining an oil-based lubricant within the shaft.

Dichtomatik Oil Seal, SF, 12.205 in Inside Dia, 13.78 in Outside Dia, 80 Durometer, 0.709 in Width, -20 to 400 deg F, Fluorocarbon Lip, Import

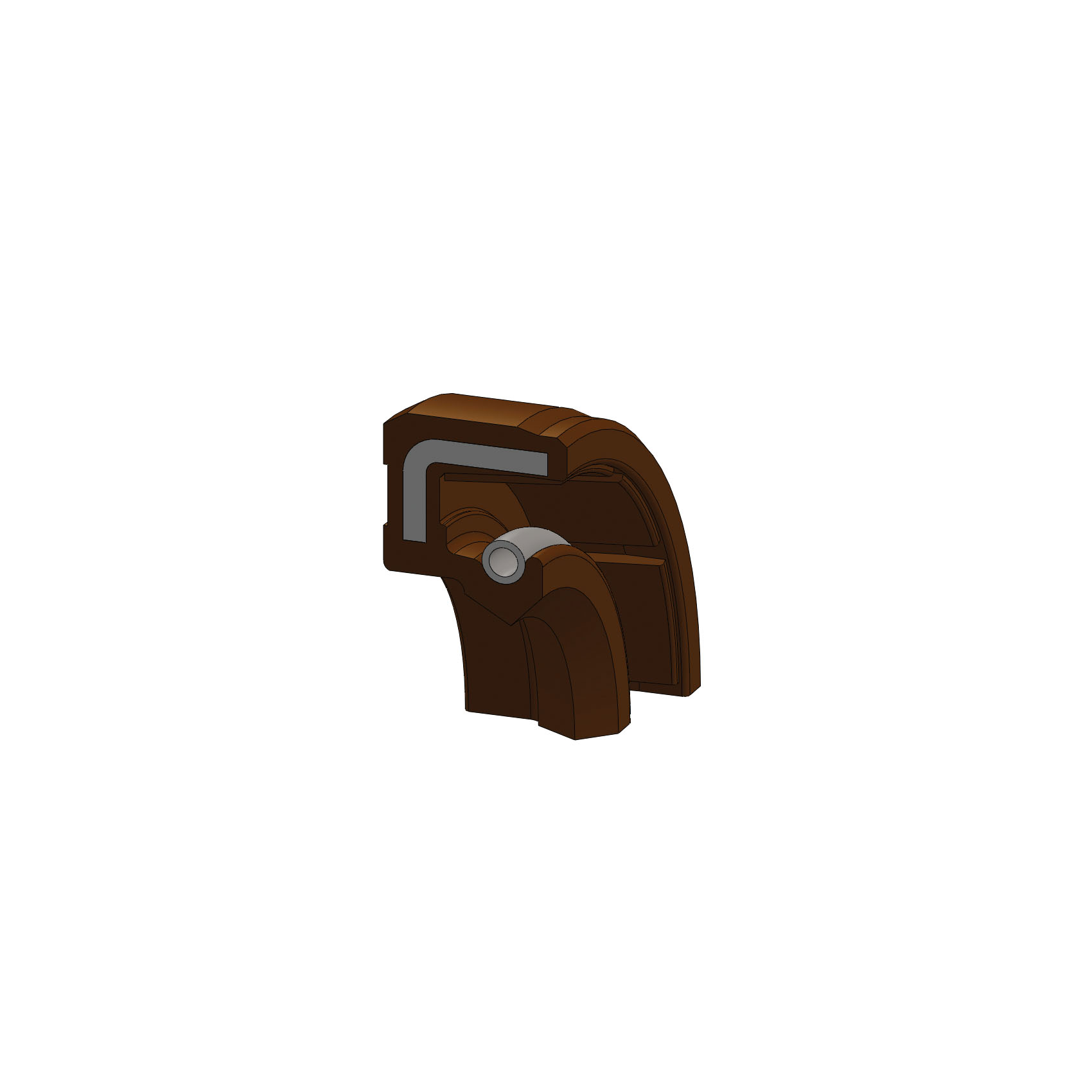

  • Low-pressure single lip with garter spring without protection from contaminates
  • Rubber cover OD for improving OD sealing ability, with additional rubber fully protecting the inner case
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TCM_20231SM_Catalog.pdf
Standard/Approvals      :      ISO 9001 Certified|UL Listed
Application      :      Gearboxes, Pumpjacks, Pumping Units and Artificial Lift Systems
