Micron®
32-113342-6681

The Micron® DuraTRUE™ is a high-precision, planetary gearhead that can ship standard with the innovative RediMount™ adapter kit, allowing for quick and error-free mounting to any servo motor. With a variety of shaft configurations, you can design your system in the smallest of envelopes, eliminating the need for coupling. Featuring a "T" design that allows for running two axes with one motor, the DuraTRUE™ has many ratios in stock for immediate delivery.

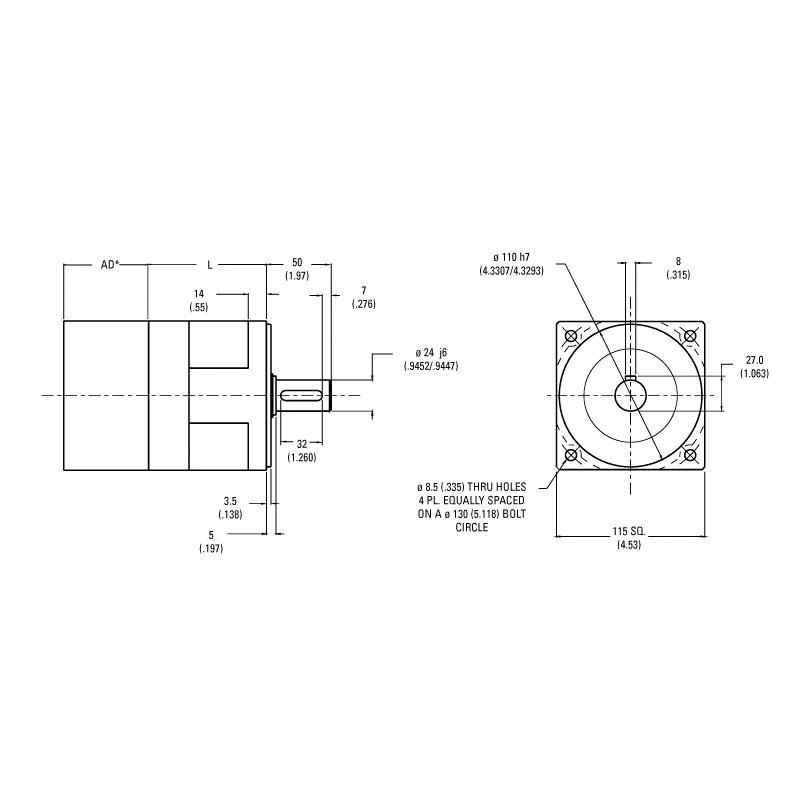

Micron® TRUE Planetary™ Spur Gearhead, Cyclical-Duty, Series: DuraTRUE™, 3:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 24 mm j6 Output, 1333 rpm Output Maximum Speed, 4000 rpm Input Maximum Speed, 56 N-m, 8 arcmin Backlash, 32 mm L x 8 mm W x 27 mm H Keyway, 93 % Efficiency, Grease Lubrication, In-Line Vertical Mount, Anodized Aluminum, 115 mm W x 115 mm H

• RediMount™ system provides error-free motor installation
• High torque to size ratio allows compact design
• Low backlash eliminates positioning errors due to lost motion
• Adapter length (AD) may vary depending on motor
• Inertia matching keeps servo system stable and in control
• High rigidity optimizes system response
• Self re-lubrication eliminates costly maintenance and downtime
• High radial load capacity mount pulleys and pinions directly on the output shaft
• Stainless steel output shaft
• Size 115 frame
• RM115-88 RediMount™ kit
