Browning®
767561

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

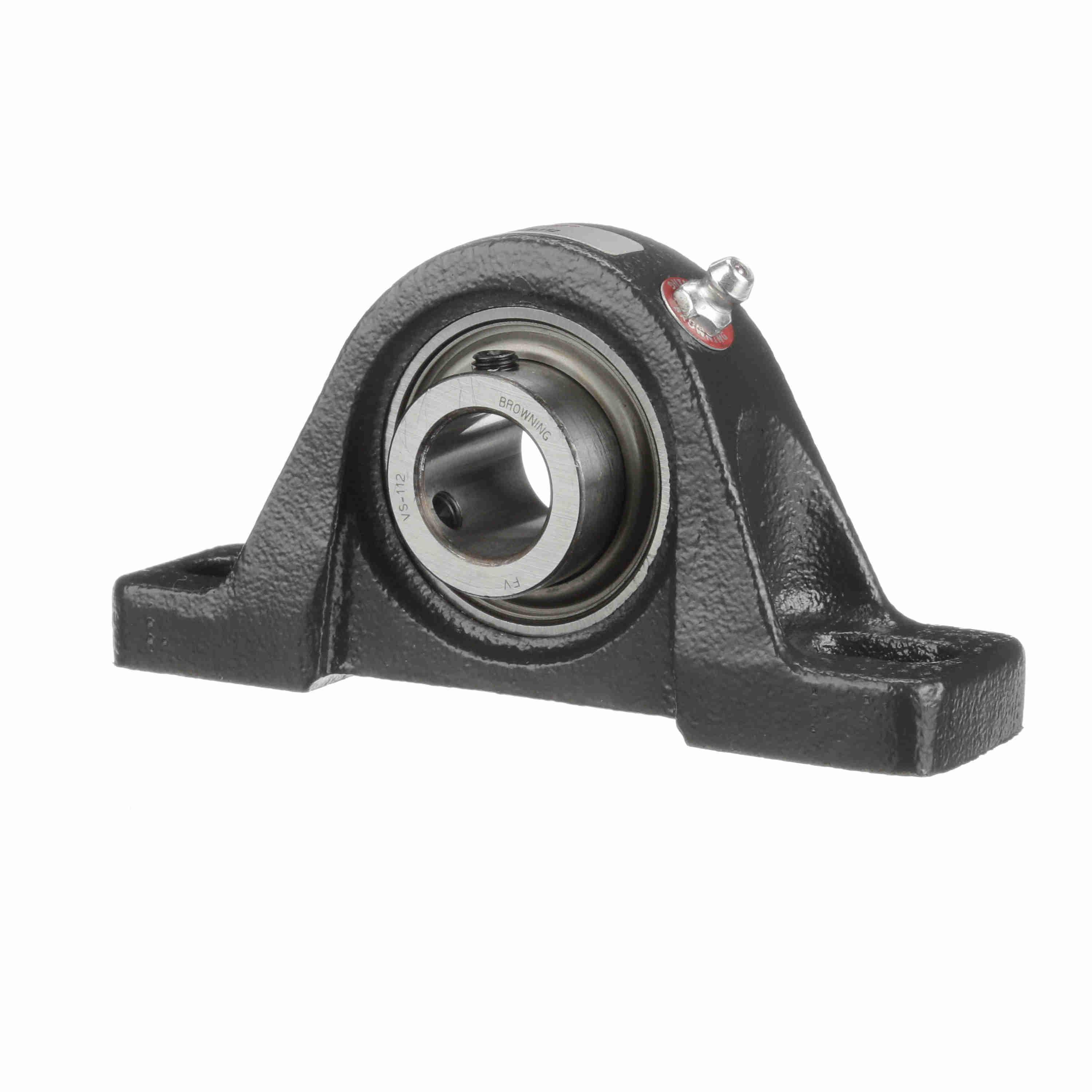

Browning® Pillow Block Ball Bearing Unit, Intermediate Duty Low Base, Series: VPLS 100, 3/4 in Bore, 3-31/64 to 4-17/64 in Bolt Center-to-Center Length, 1-1/4 in Base to Bore Centerline, 5 in Overall Length, 2-15/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-11/32 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 2611 lb Dynamic/1444 lb Static Load, 200 to 250 deg F, 4000 rpm Maximum, Cast Iron, Gray Painted

• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Semi solid cast iron rugged base design provides an excellent mounting foundation
• Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
• Nylon retainer
• 52100 steel insert
• Alemite fitting lubrication
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VPLS112_Specification_Sheet.pdf
