Browning®
1229095

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

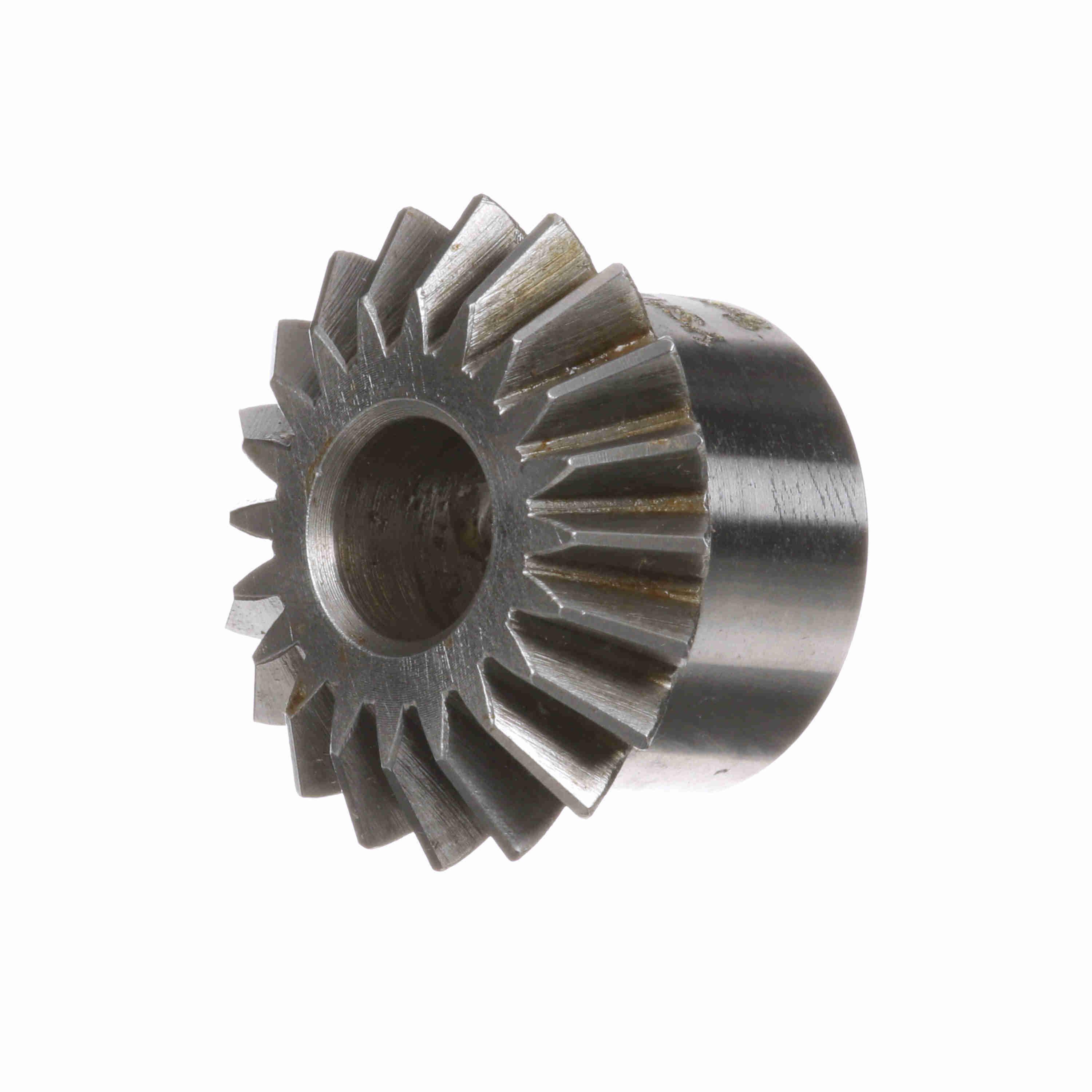

Browning® Miter Gear, Minimum Plain Bore Straight Tooth, 1/2 in Bore, 1:1 Gear Ratio, 20 Teeth, 16 Diametral Pitch, 1-1/4 in Pitch Diameter, 0.27 in Face Width, 1 in Diameter Hub, 1/2 in Hub Projection, 27/32 in Overall Length, 20 deg Pressure Angle, Unhardened Steel

• Browning Gears are rated in accordance with AGMA standards
• Modification Options Available - 1. Cut to Desired Length, 2. Milled and Matched Ends, 3. Drilled or Drilled and Tapped Holes for Mounting
• Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
• Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
• Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral
