Sealmaster®
551903

Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive Type E bearings. The exclusive features include unitized replaceable inserts, self aligning capability, split housing and the Sealmaster® alignment pin which provides for a direct path for lubrication into the bearing and helps prevent outer ring rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric with a wide variety of housing, sealing and lubrication options as illustrated on the pages to follow.

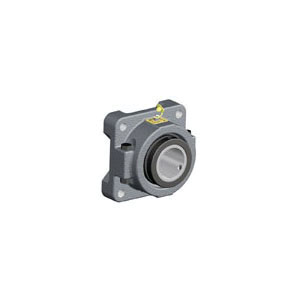

Sealmaster® Tapered Roller Bearing Unit, Non-Expansion Round/Straight Bore, Series: RFBA, 3-7/16 in Bore, 7 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 9-1/4 in Overall Length/Diameter, 5-1/4 in Overall Depth, 9-1/4 in Overall Height, Single Setscrew Locking Device, Cast Iron Bearing, Felt Seal, 15320 lb Dynamic Load, 1500 rpm Maximum, 250 deg F, Black Oxide

• Sealmaster® RPB series contains heavy duty tapered roller bearings for radial, thrust and combination loading
• Durable cast iron split housings for quick insert replacement
• Replaceable cartridge insert
• Positive lubrication system provides direct grease path to the bearing
• 2-locking collars are standard on all units with 2-setscrews at 120 deg for balanced three point contact
• Patented race mounted felt lined flinger seals help filter out contaminants and are not subject to misalignment distortion

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_550242_Catalog.pdf
