Browning®
1228204

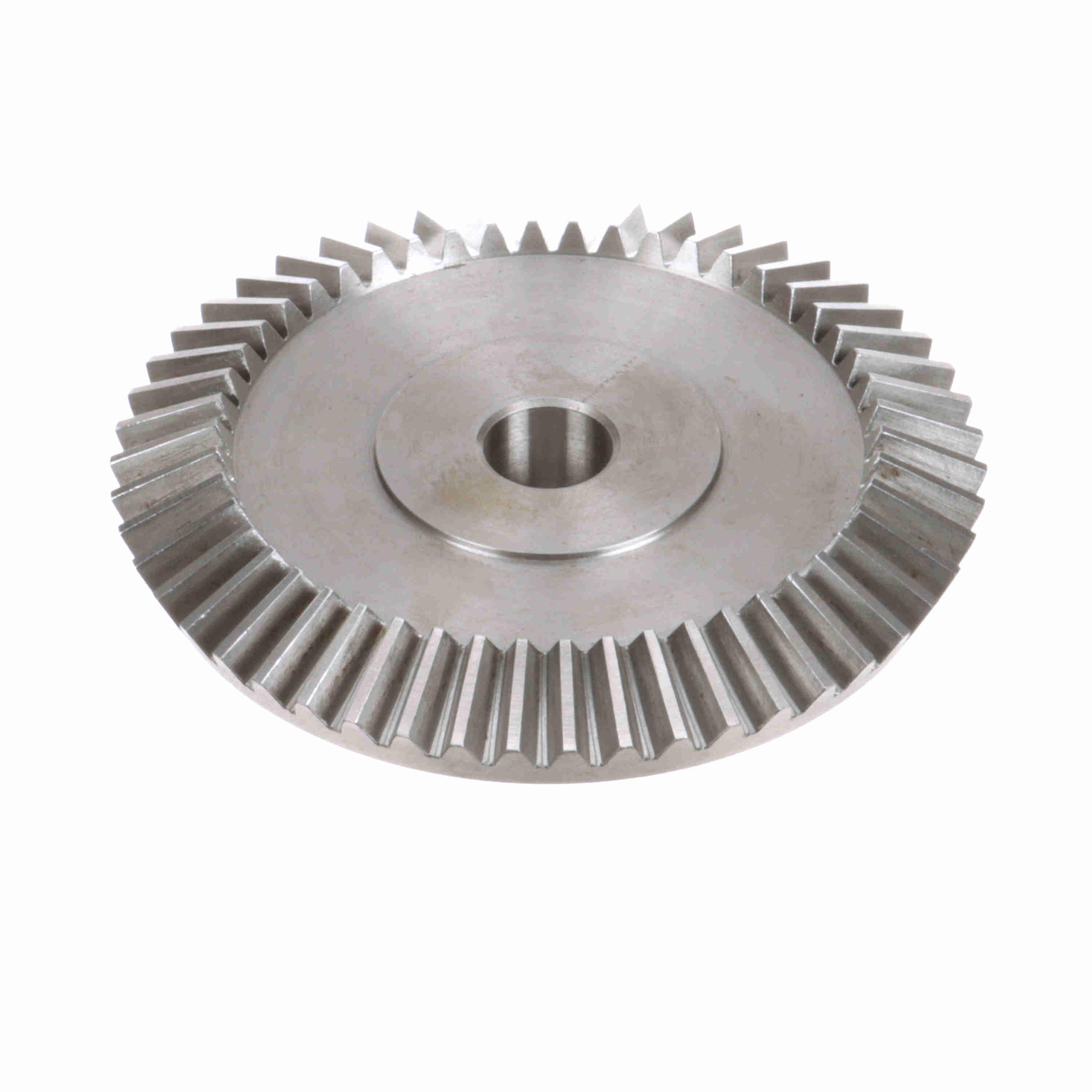

Browning® Bevel Gear, MPB Straight Tooth, 3/4 to 1-1/4 in Bore, 2:1 Gear Ratio, 50 Teeth, 10 Diametral Pitch, 5 in Pitch Diameter, 0.7 in Face Width, 2 in Diameter Hub, 1-19/32 in Hub Projection, 1-19/32 in Overall Length, 20 deg Pressure Angle, Steel

• Browning Gears are rated in accordance with AGMA standards
• Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
• Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
• Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
