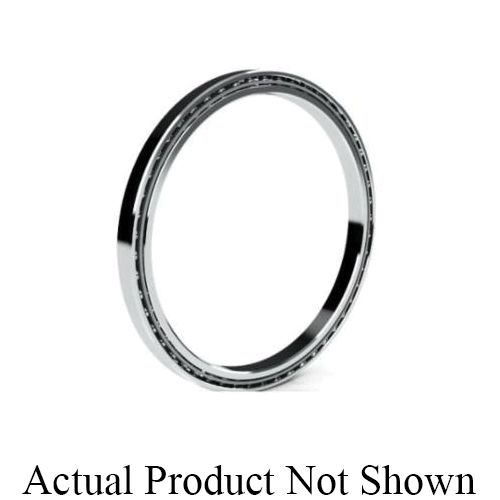

Kaydon® Bearings
SB020CP0

When an application calls for a high precision, ultra-clean thin section bearing to operate in close proximity to corrosive chemicals and with lubricants that don't protect against corrosion, Kaydon® Reali-Slim® stainless steel bearings are the ideal solution. Kaydon® AISI 440C stainless steel bearings meet the minimum 58 HRC hardness level and can support the same loading as 52100 chrome steel. Reali-Slim® stainless steel thin section bearings minimize the surface degradation and particulate formation so commonly found in harsh environments.

Kaydon® Bearings Reali-Slim® Precision Thin Section Ball Bearing, Radial Contact Type C, Series: SB Series, 2 in Bore Dia, 2-5/8 in Outside Dia, 1 Row, 5/16 in W, Open Closure, 577 lb Radial Dynamic/930 lb Radial Static, AISI 440C Stainless Steel Bearing, Brass/Non-Metallic Composite Cage, -65 to 250 deg F

• The type C radial contact bearing is a single row radial ball bearing of conventional design
• A conrad assembled bearing designed primarily for application of radial load
• Deep ball grooves also permit application of some thrust load in either direction
• Often used in conjunction with another bearing
• One piece formed ring with "snap-over" pockets

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kaydon_Bearings_JA020CP0_Catalog.pdf
