Browning® 3789773 H100BTL11
Send NoImagePrint
  1. pin-int

Browning®
3789773

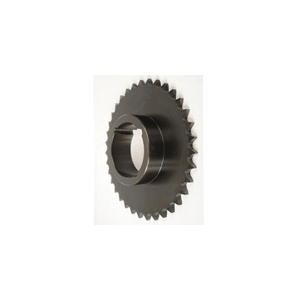

Browning® 3789773 Single Strand Taper Bore Bushed Type 1 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 5.007 in OD, #100 Chain, 11 Teeth, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: H100BTL11
  • MPN: 3789773
  • UPC: 662289184910
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

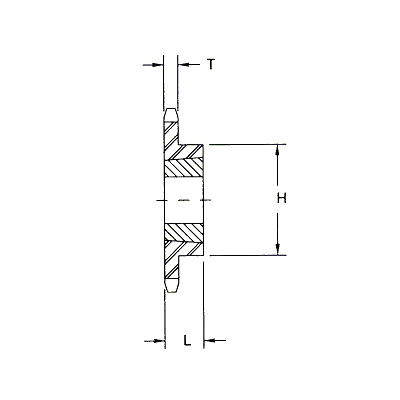

Browning® Roller Chain Sprocket, Single Strand Taper Bore Bushed Type 1, 1/2 in Bore Dia, 5.007 in Outside Dia, #100 Chain, 11 Teeth, 4.437 in, 3.016 in Hub Dia, 1-1/2 in Length Through Bore, Steel

  • This product has the Browning® exclusive twice the life guarantee
  • Compact design
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
  • 1-11/16 in/ft taper
  • Setscrew or cap screw acts as external key
  • Flush fit, less space on shaft
  • No protruding flange
  • For use with 1-1/4 in pitch ANSI chain
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_H100TB11_Specification_Sheet.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
