Martin
AK25 1

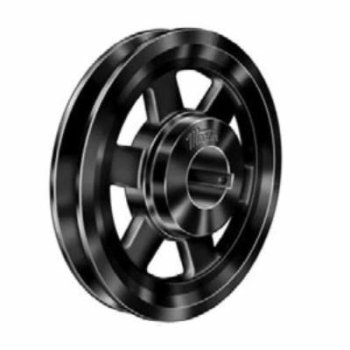

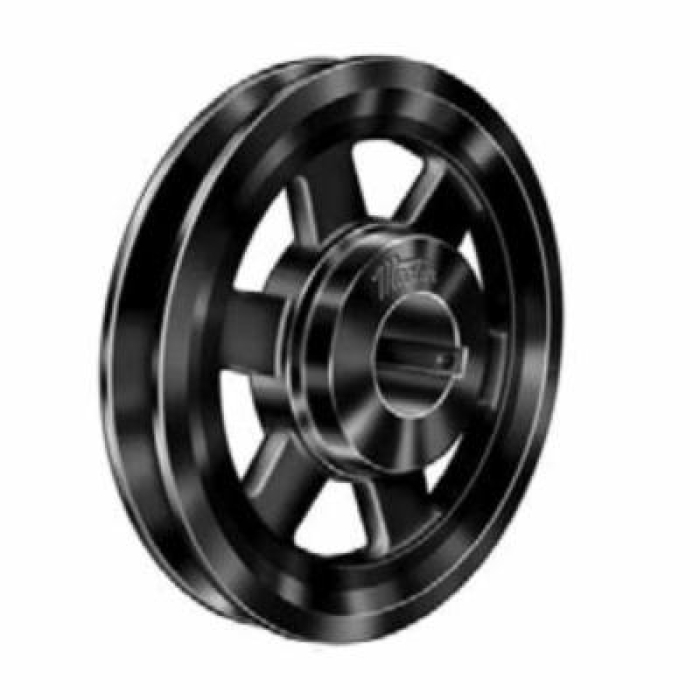

Martin AK25 1 AK Series Bored-to-Size Type B Web FHP Sheave, 1 in MST® Bushed Bore, 2-1/2 in OD, 1 Groove, 2.3 in (A/4L)/1.96 in (3L) Dia Pitch

Manufacturer: Martin Sprocket & Gear
Brand: Martin
BSC Item#: AK25-1
MPN: AK25 1
UPC: 697950543147
CPN:
Min. Order Qty: 1
Qty. Interval: 1

Availability:

Call for Availability

Login to see price
Add To Cart
My List
Add / Remove CPN

DESCRIPTION
SPECIFICATIONS
Documents

Martin FHP Sheave, Bored-to-Size Type B Web, Series: AK Series, MST® Bushed Bore, 1 in Bore Dia, 2-1/2 in Outside Dia, 2.3 in (A/4L)/1.96 in (3L), 1 Groove, 15/16 in Overall Length, For Use With: 3L/4L/ A Cross Section V-Belts, Steel

Type	:	Bored-to-Size Type B Web
Series	:	AK Series
Bore Type	:	MST® Bushed
Bore Diameter	:	1 in
Outside Diameter	:	2-1/2 in
Pitch Diameter	:	2.3 in (A/4L)/1.96 in (3L)
Number of Grooves	:	1
Overall Length	:	15/16 in
Suitable For Use With	:	3L/4L/ A Cross Section V-Belts
Material	:	Steel
