TB Wood's®
P4014M40

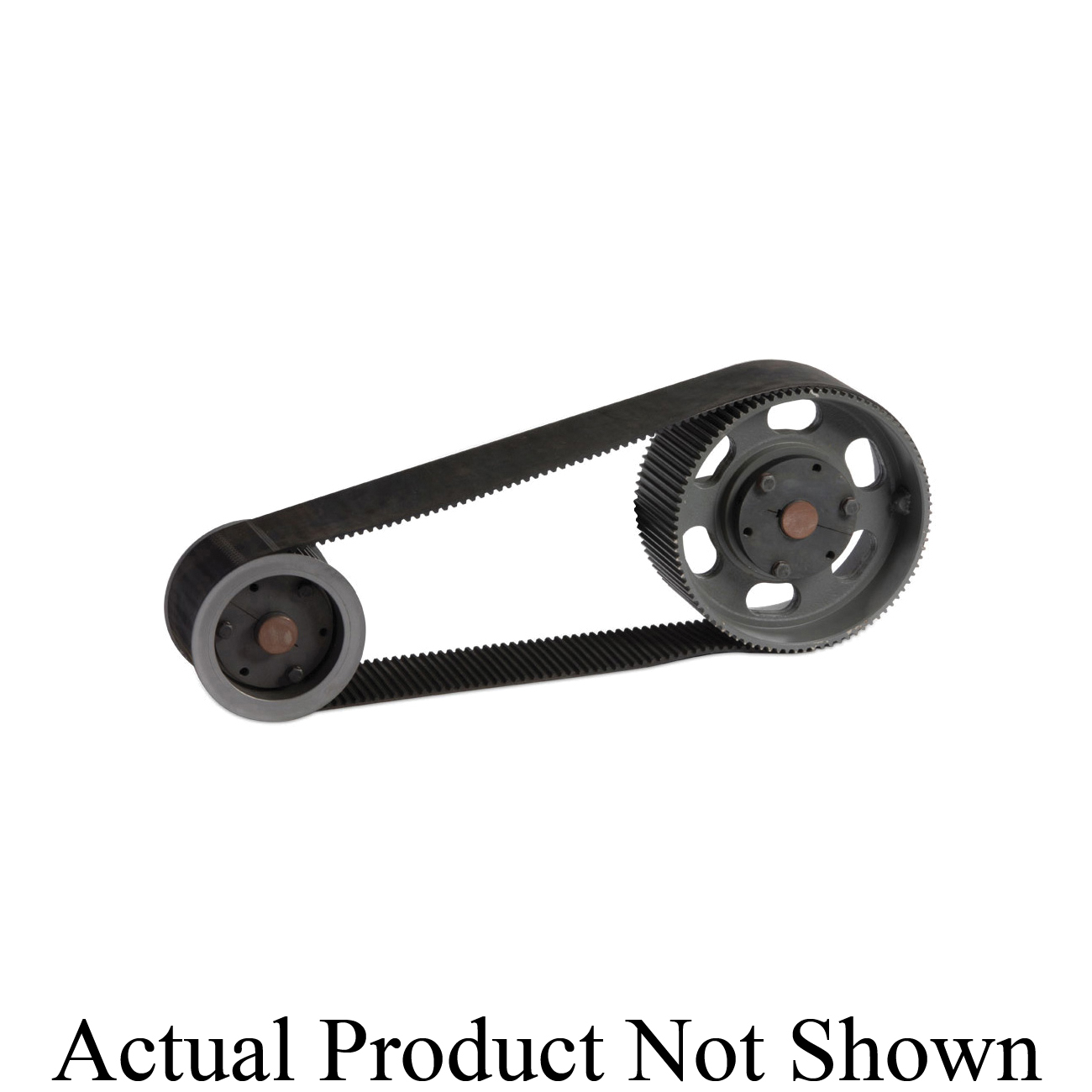

TB Wood's® Synchronous Plus synchronous drives offer the added flexibility of a dual sprocket design that features both metric and standard-tapped holes coupled with a high capacity Synchronous Plus belt. As a result, the Synchronous Plus drive offers a significantly higher horsepower rating at the standard industry price.

TB Wood's® Synchronous Plus Sprocket, Type DF Solid, QD® Bore, 1/2 to 2-15/16 in Bore Dia, 6.91 in Outside Dia, 7.018 in, 14 mm Pitch, 2.13 in Face Width, 7-1/2 in Flange Dia, SF Bushing, 2-3/8 in Overall Length, For Use With: 40 mm W Type 14M Belt, Cast Iron

• Delivers 50% more horsepower capacity than standard construction high torque drives
• Allows for use of smaller and lighter weight sprockets
• Provides a more economical solution than standard high torque
• Dual drilled many sprocket sizes are drilled for both inch and metric hardware

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TB_Woods_10408M12W_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TB_Woods_W11214M120_Manual.pdf
