McGill®
5453620000

McGill® CAGEROL® machined race needle bearings are manufactured from bearing quality steel. Most sizes use crowned or end relieved, rollers to help reduce end stresses and allows for greater misalignment. The rollers are separated by a steel retainer (cage) to help achieve higher speeds and provide a lubricant reservoir. CAGEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.

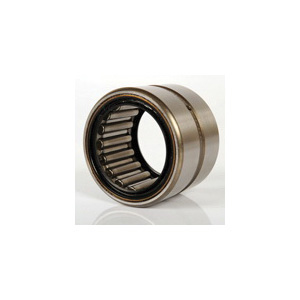

McGill® CAGEROL® Unmounted Needle Roller Bearing, Heavy Duty Standard, Series: MR Series, 2-1/4 in Bore, 3 in OD, 1 Rows, 1-3/4 in Width, Double Seal Closure, 22400 lb Dynamic/39100 lb Static Load, 52100 Steel Bearing, Rubber Seal, Steel Cage, 1700 rpm Maximum, -20 to 250 deg F

• Machined outer race
• Needle roller with end relief
• Annular lubrication groove and holes
• Factory grease fill
• Double seal with one lip turned in and one lip turned out

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_0304046000_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_5452200000_Specification_Sheet.pdf
