LEESON®
110109.00

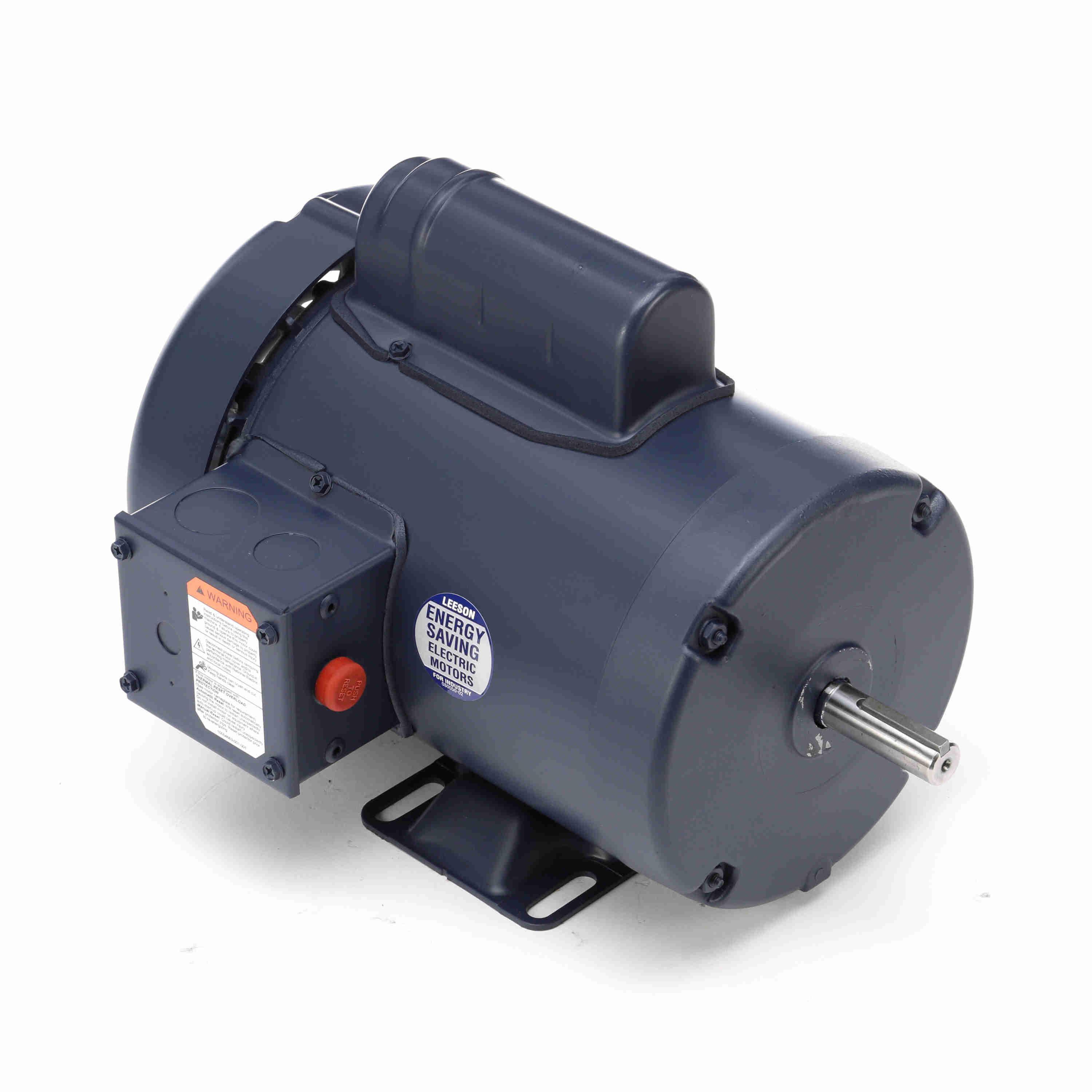

LEESON® AC Motor, 2-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, Pressure Washer Motors, Woodworking/Power Tool Motors Application, Capacitor Start Motors Special Features, 1.5 hp, 115/208 to 230 VAC, 17/9 to 8.5 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 2.25 ft-lb Torque, Rigid Base/Resilient Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 12.48 in L Dimensions

• Double shielded ball bearings
• Dynamically balanced rotors
• Meets or exceeds NEMA service factors
• Fully gasketed
• Heavy-duty, rolled steel construction ensures motor durability
• Permanently lubricated sealed bearings extend the lifetime of the motor
• Operational at 115/208-230 V at 60Hz.
• Six button interface, LED display
• Single phase input
• Continuous duty cycle design allows maximum operation at the rated power specifications
• Nameplate image may vary from actual product

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEESON_110109_00_Specification_Sheet.pdf
