LEESON®
LM33562

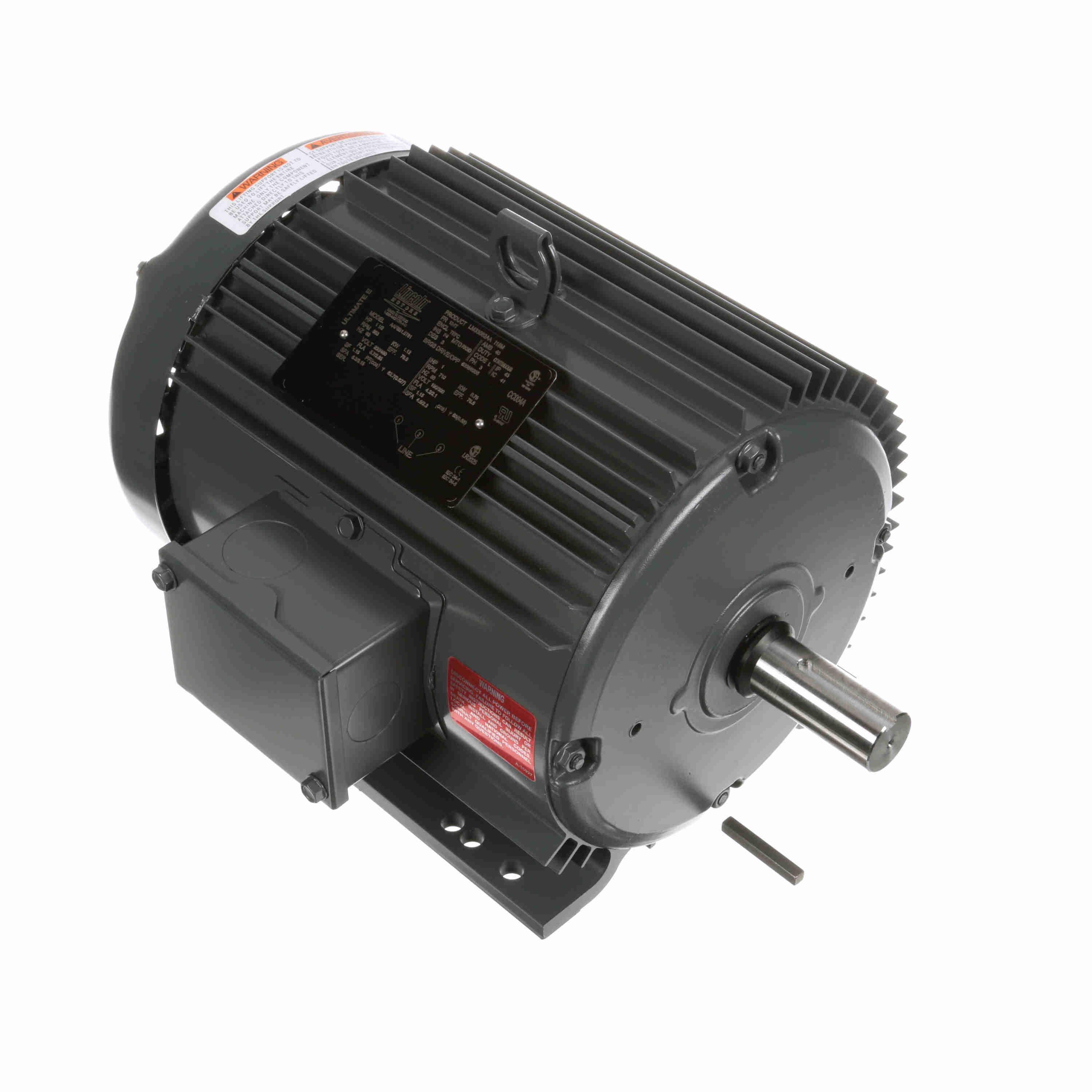

LEESON® Ultimate e® AC Motor, 8-Pole Continuous Duty, General Purpose AC Motors Application, 1.5 hp, 230/460 VAC, 5.7/2.85 A, 60 Hz Frequency, 3 ph, 853 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 9.17 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 14.96 in L x 11.51 in W x 10.41 in H Dimensions

• Premium efficient ratings and inverter rated
• Class B insulation systems 42, 48 and 56 frames
• Torques exceed NEMA performance standards
• Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
• Continuous duty, Dynamically balanced rotors
• Premium efficiency promotes improved reliability
• Heavy-duty, rolled steel construction ensures motor durability
• Permanently lubricated sealed bearings extend the lifetime of the motor

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEESON_LM33562_Specification_Sheet.pdf
