Sealmaster®
711788

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

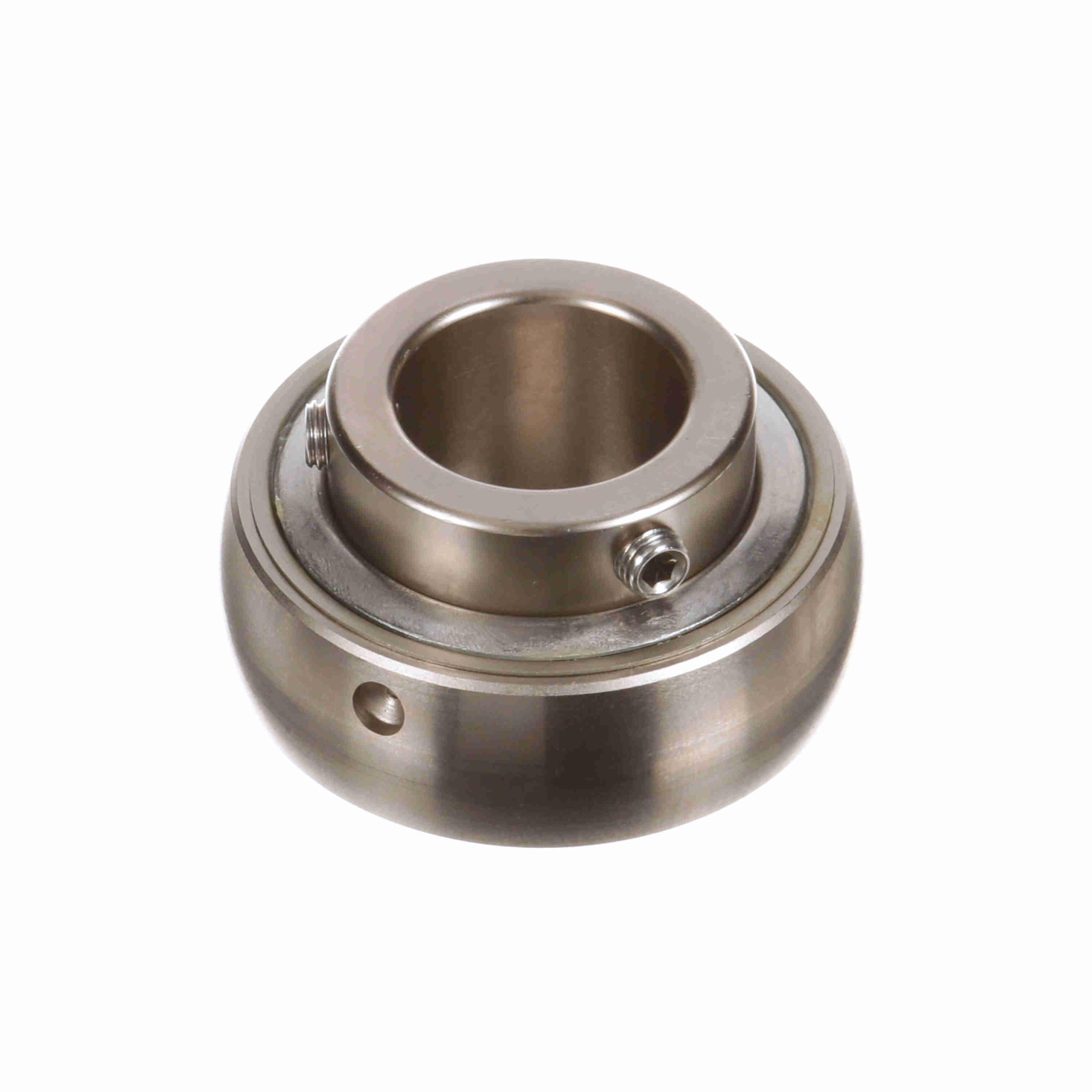

Sealmaster® Ball Bearing Insert, Round Bore Standard Duty, Series: PN Series, 1-1/4 in Bore Dia, 2.4409 in Outside Dia, 1-1/2 in Width, 4381 lb Dynamic/2567 lb Static, Steel Bearing, FKM Seal, 4500 rpm Maximum, -20 to 220 deg F, Nickel Plated

• Wide outer race
• Lock pin and dimple system
• Zone hardened inner race
• Lithium complex NLGI #2 grease with an EP additive
• Land riding retainer
• Setscrew locking
• Triple lip seal type
• High performance seal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
