Browning®
1228188

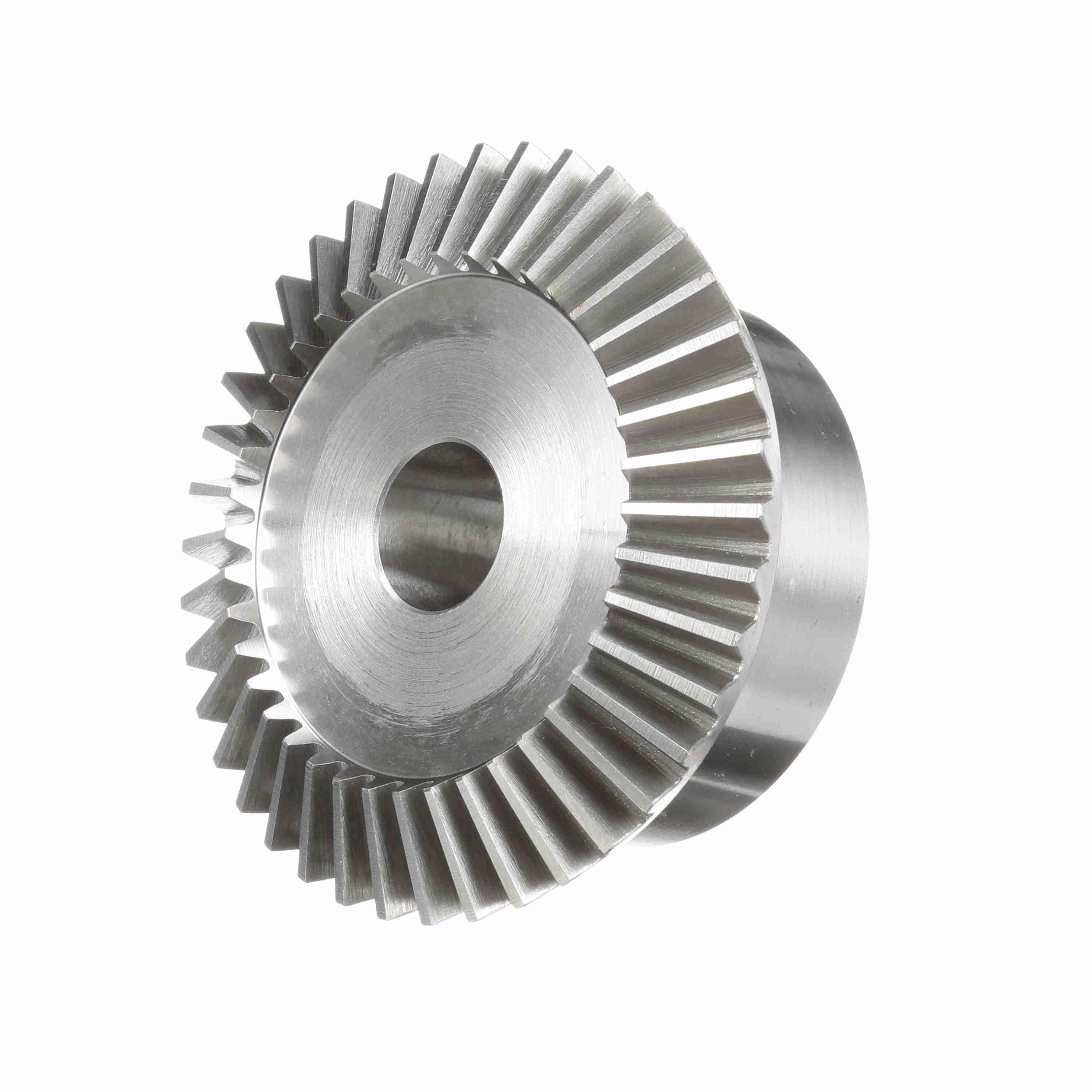

Browning® Bevel Gear, MPB Straight Tooth, 7/8 to 2 in Bore, 2:1 Gear Ratio, 40 Teeth, 10 Diametral Pitch, 4 in Pitch Diameter, 0.71 in Face Width, 3 in Diameter Hub, 1-3/16 in Hub Projection, 1-11/16 in Overall Length, 20 deg Pressure Angle, Steel

• Browning Gears are rated in accordance with AGMA standards
• Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
• Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
• Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided

• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_YSB20B2020_Catalog.pdf
