Micron®
52-118708-E866

The Micron® EverTRUE™ planetary gearhead, which is designed to run in a continuous duty cycle, is lubricated for life and rated to last a minimum of 30000 hr in a 24 hr/day, 7 day/week application. Plus, Micron® innovative RediMount™ adapter kit allows for quick and error-free mounting to any servo motor.

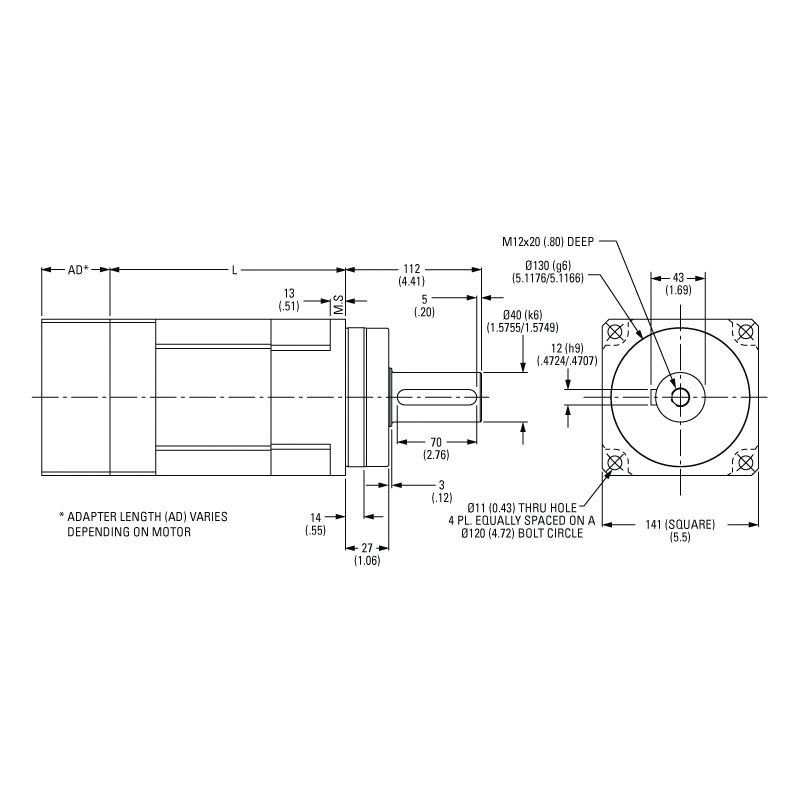

Micron® TRUE Planetary™ Spur Gearhead, Continuous-Duty, Series: EverTRUE™, 100:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 40 mm k6 Output, 50 rpm Output Maximum, 5000 rpm Input Maximum, 200 N-m Torque, 5 arcmin Backlash, 70 mm L x 12 mm h9 W x 43 mm H Keyway, 90 % Efficiency, Grease Lubrication, In-Line Vertical Mounting, Anodized Aluminum, 141 mm W x 141 mm H Dimensions

• RediMount™ system provides error-free motor installation
• Lubricated for life and no maintenance
• 3 times the life and all units rated at 30000 hr life
• Designed to run 24 hr/day and 7 days/week
• Stainless steel output shaft
• Size 14 frame
• RM142-204 special RediMount™ kit

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Micron_52_118617_D018_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Micron_52_118617_D018_Manual.pdf
