Climax C192E-150
Climax C192E-150 C192 Keyless Locking Assembly, 1-1/2 in Dia Bore, 2.638 in OD, 2.749 in Dia Hub, 1.969 in OAL, Steel
- Manufacturer: Climax Metal Products
- Brand: Climax
- BSC Item#: C192E150 CLIMAX
- MPN: C192E-150
- UPC: 044861060049
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: EACH
-
Login to see price
Drop-in replacement for commonly used hex nut keyless bushings. Mounted component remains fixed axially during installation. View Catalog Page

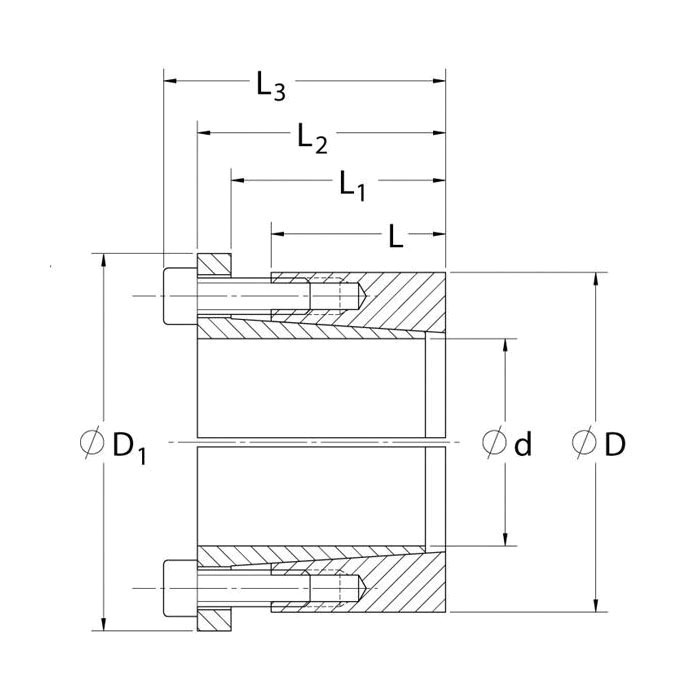

Climax Keyless Locking Assembly, Series: C192, 1-1/2 in Bore Dia, 2.638 in Outside Dia, 2.749 in Hub Dia, 8205 in-lb Transmissible Torque, 10943 lbf Transmissible Thrust, 10348 psi Shaft Contact Pressure, 6535 psi Hub Contact, M6x20 Screw, 1.969 in Overall Length, 0 to 400 deg F, Steel
- Drop-in replacement for commonly used hex nut keyless bushings
- Mounted component remains fixed axially during installation
- Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
- As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
- No key means infinite radial and axial positioning for precise alignment and timing
- Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration
