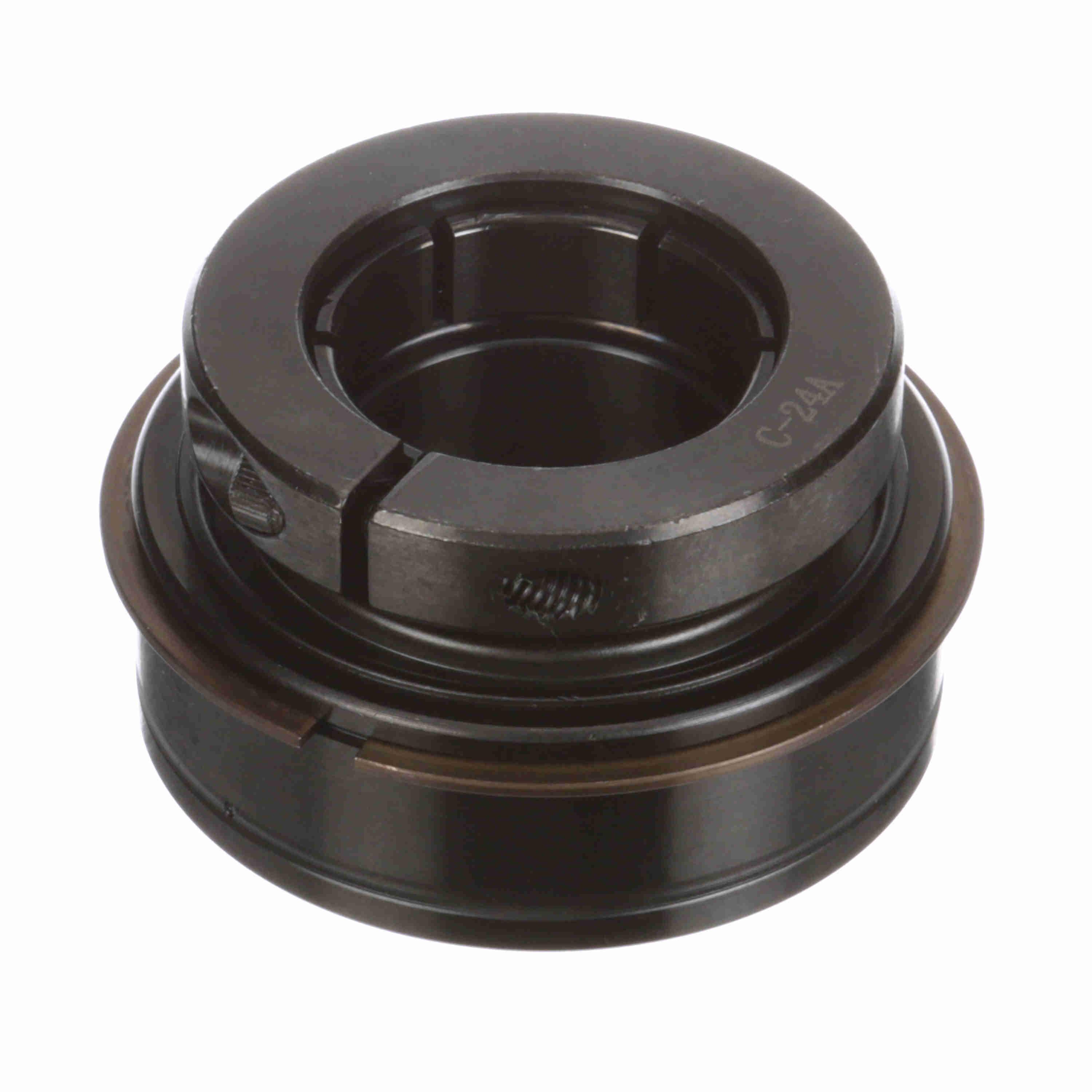

Sealmaster®
704166

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Standard-Duty Straight Bore, Series: ER-TMC, 40 mm Bore, 86.519 mm OD, 1 Rows, 50.8 mm Width, Double Seal Closure, 32650 N Dynamic/19870 N Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 4150 rpm Maximum, 250 deg F, Black Oxide Coated

• Zone hardened inner race
• Lithium complex NLGI #2 grease with an EP additive
• Outer race with tapered lands
• Land riding retainer
• Single lip contact seal type
• Cylindrical outer diameter bearing
• ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Skwezloc concentric locking for near perfect concentricity_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
