Boston Gear® XL3 7/8 XL3-7/8 BGW
Send NoImagePrint
  1. pin-int

Boston Gear®
XL3 7/8

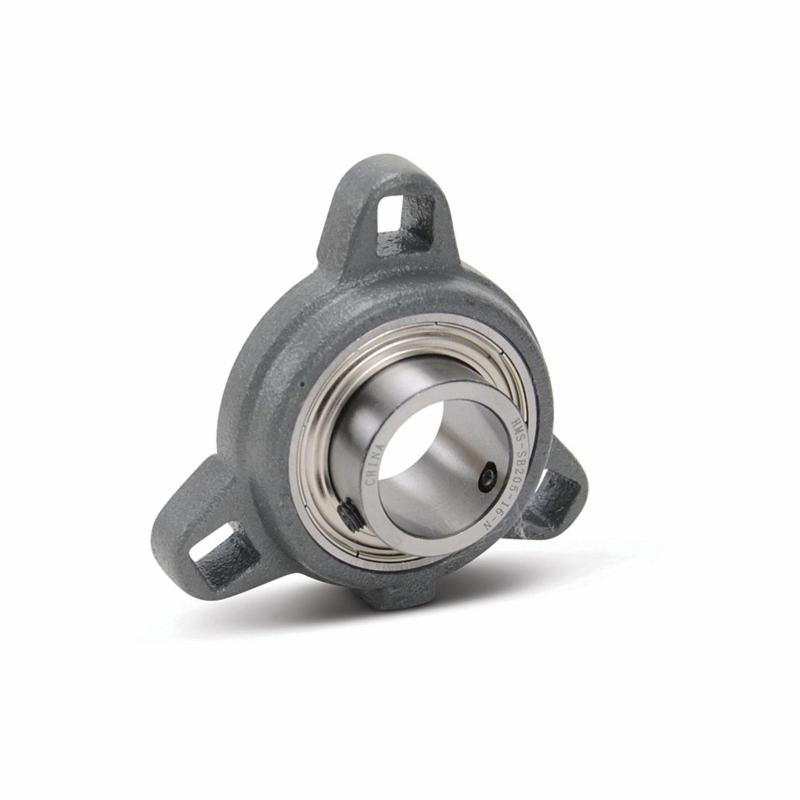

Boston Gear® XL3 7/8 Light Duty Flange Mount Ball Bearing Unit, 7/8 in Dia Bore, 3 in Dia Bolt Circle, 3-Bolt Flange Mount, 3-3/4 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: XL3-7/8 BGW
  • MPN: XL3 7/8
  • UPC: 781711645635
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Boston Gear® comprehensive selection of flanged bearings includes spherical bearings with extended inner races featuring setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Positive locking by setscrews or an eccentric locking collar ensures smooth operation and a synthetic lip-type seal with steel flingers offer enhanced seal effectiveness.

Boston Gear® Flange Mount Ball Bearing Unit, Light Duty, Series: XL3, 7/8 in Bore, 3 in Diameter Bolt Circle, 3-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-1/8 in Overall Depth, Set Screw Locking Device, Ductile Cast Iron Bearing, Synthetic Seal, 455 lb Load, 5000 rpm Maximum, 225 deg F, Uncoated

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_GA101B_Catalog.pdf
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_10F11516_Manual.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_10F11516_Specification_Sheet.pdf
Standard/Approvals      :      PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
Application      :      Material Handling, Packaging Machinery, Shrink Wrap Machinery and Printing Press Applications
