Sealmaster®
737285

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

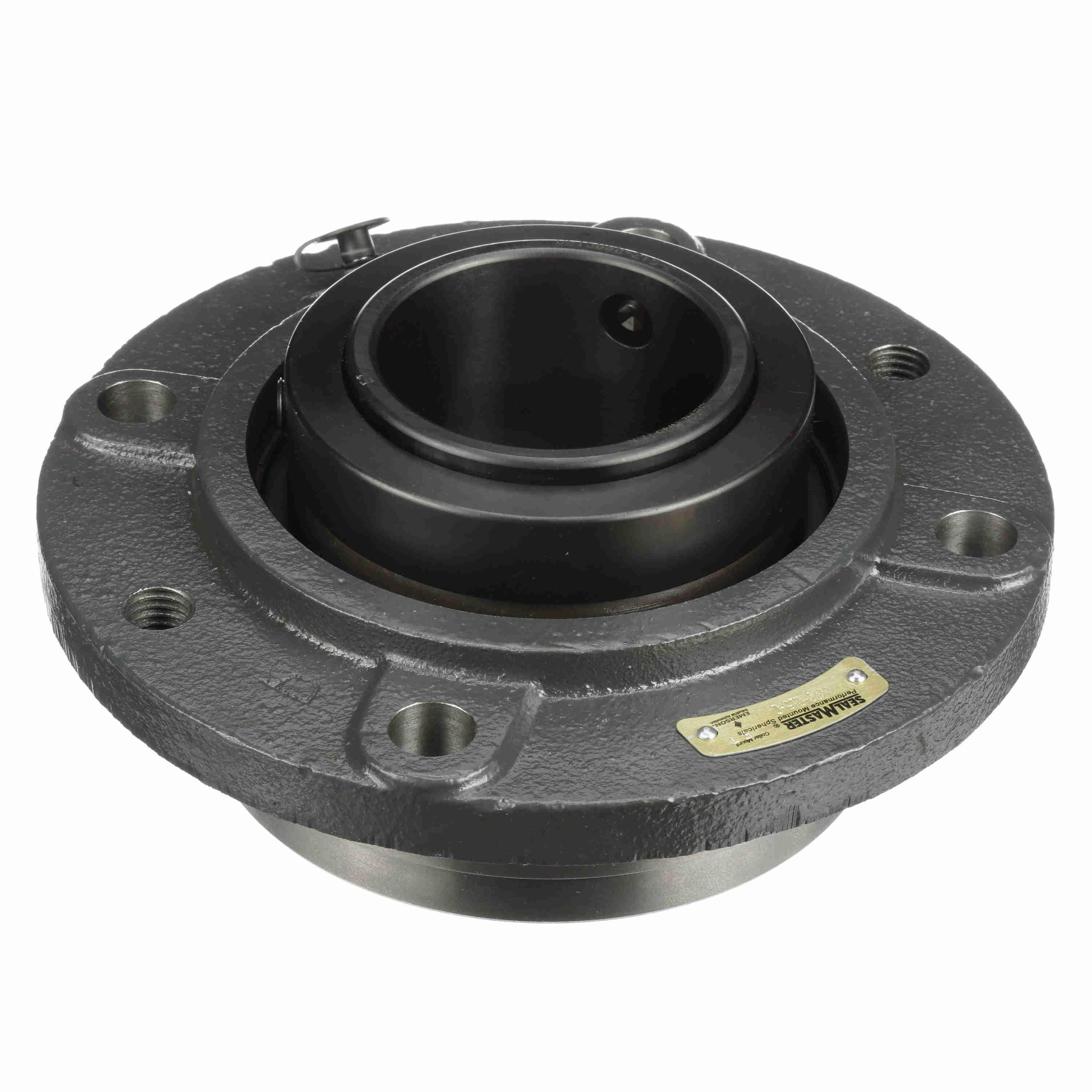

Sealmaster® Unitized Flange Cartridge Spherical Roller Bearing Cartridge Unit, Non-Expansion Round/Straight Bore, Series: USFC5000, 2-15/16 in Bore, 7-1/2 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 8-3/4 in Overall Length/Diameter, 3-7/8 in Overall Depth, Collar Mount/Set Screw Locking Device, Cast Iron Bearing, 47447 lb Dynamic/65610 lb Static Load, 1600 rpm Maximum, 250 deg F, Uncoated

• Sealmaster® offers an innovative double-row spherical roller bearing, featuring new geometries which provides optimal load capacity, misalignment and speed capability
• The Sealmaster® double-lip contact seal, mounted between races, can accommodate +/- 2 deg of misalignment
• The Sealmaster® performance mounted roller bearings feature locking collars and setscrews at 120 deg, providing a balanced 3-point contact
• Metal land riding retainer type
• 52100 black oxide coated steel bearing
• Wide race and rollers and steel cage for high dynamic load ratings
• Single-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy cast iron housing

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737171_Installation_Manual.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737262_Catalog.pdf
