Browning® 1123728 80B28
Send NoImagePrint
  1. pin-int

Browning®
1123728

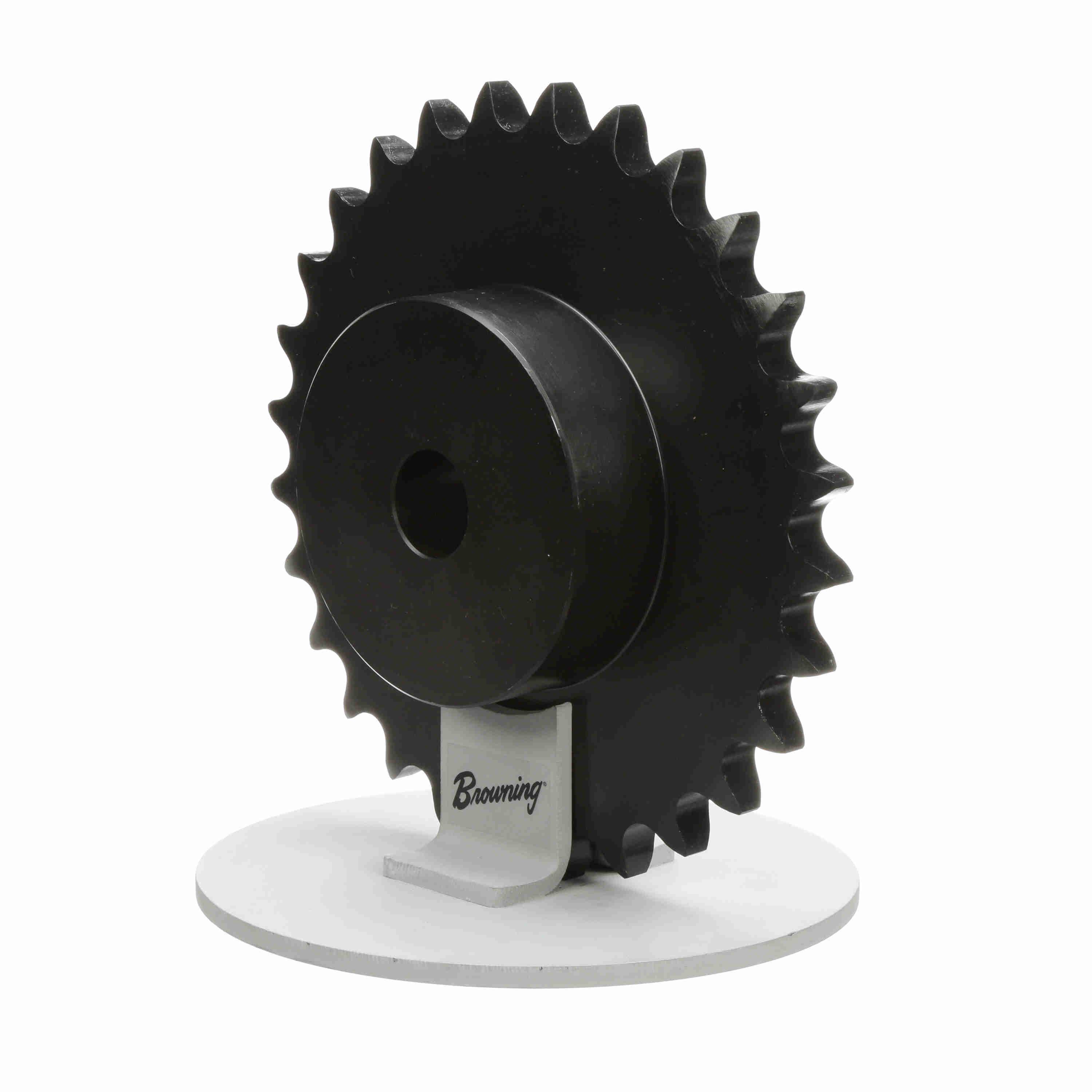

Browning® 1123728 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 1-1/4 in Dia Bore, 9.48 in OD, #80 Chain, 28 Teeth, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 80B28
  • MPN: 1123728
  • UPC: 662289280322
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 1-1/4 in Bore Dia, 9.48 in Outside Dia, #80 Chain, 28 Teeth, 8.931 in, 4-3/4 in Hub Dia, 2 in Length Through Bore, Steel

  • Larger hub diameter allows larger bore capacity
  • Lasts longer than sprockets made from low carbon steel
  • Maximum bore shown will accommodate standard keyways and setscrews over keyway
  • Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
  • Hub projection on one side
  • High quality, high carbon steel
  • Hub is recessed for chain clearance
  • For use with 1 in pitch ANSI chain
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_D80P13_Specification_Sheet.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
