Browning®
1155803

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

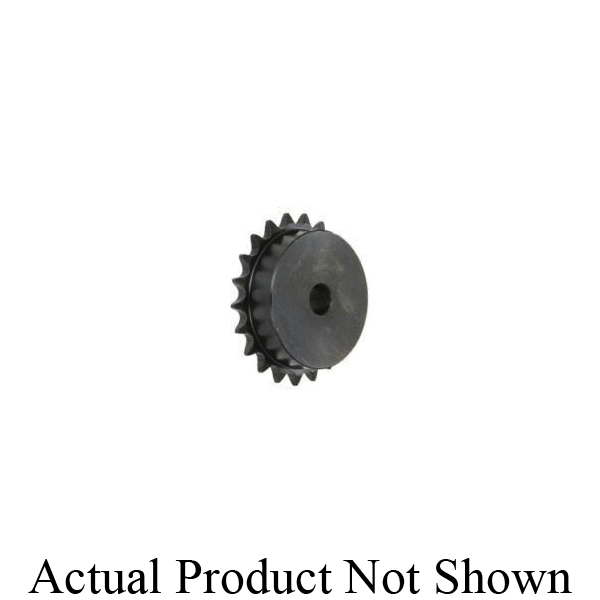

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 5/8 in Bore Dia, 3.94 in Outside Dia, #41 Chain, 23 Teeth, 1/2 in Pitch, 3.672 in, 3-3/16 in Hub Dia, 1 in Length Through Bore, Steel

• Larger hub diameter allows larger bore capacity
• Lasts longer than sprockets made from low carbon steel
• Maximum bore shown will accommodate standard keyways and setscrews over keyway
• Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
• Hub projection on one side
• High quality, high carbon steel
• For use with 1/2 in pitch ANSI chain
