Browning®
1042084

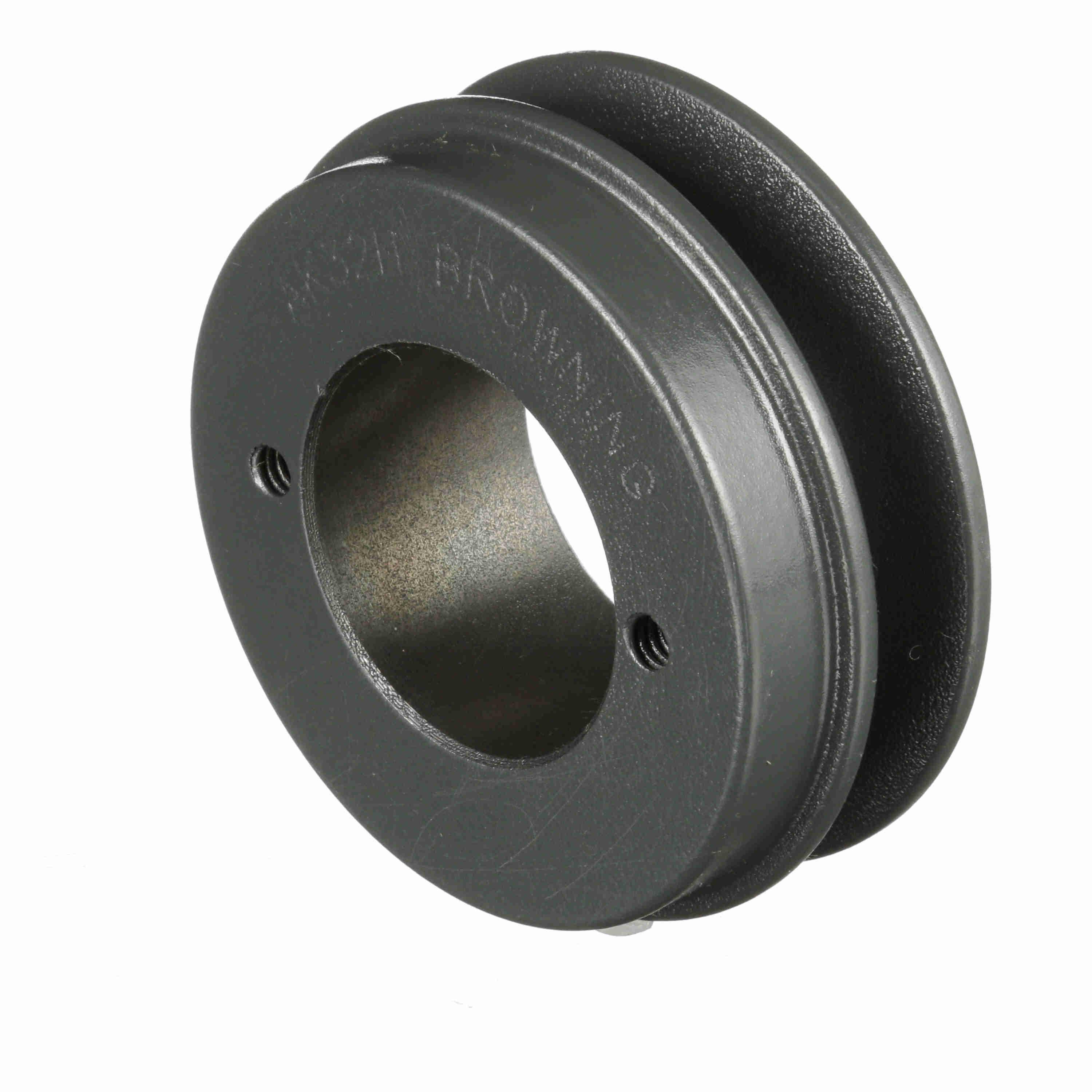

Browning® Classical Gripbelt® Single Groove Sheave, Type 1, Series: AK Series, Split Taper Bore, 3/8 to 1-1/2 in Bore Dia, 3-1/4 in Outside Dia, 3.2 in (A)/2.66 in (3L), 3/4 in Face Width, 29/32 in Hub Projection, H Bushing, 1-13/16 in Overall Length, For Use With: 4L/A and 3L Cross Section Belt, Cast Iron, Gray Painted

• External rib design provides cooling for longer belt life
• Increases wall thickness by 30%
• Increased hub diameter by 20%
• Tighter tolerances by 25%
• Twice balanced after assembly
• Tightened micro-finish on groove walls for increased belt life
• Split Taper® bushings are highest torque carrying capacity in the Browning® bushing product line
• Double split barrel assures true concentricity
• Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
• 1 and 2 Grooves are available to meet any fractional horsepower requirement
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_AK46HCLEARPK_Catalog.pdf
