Boston Gear®
L148Y-G

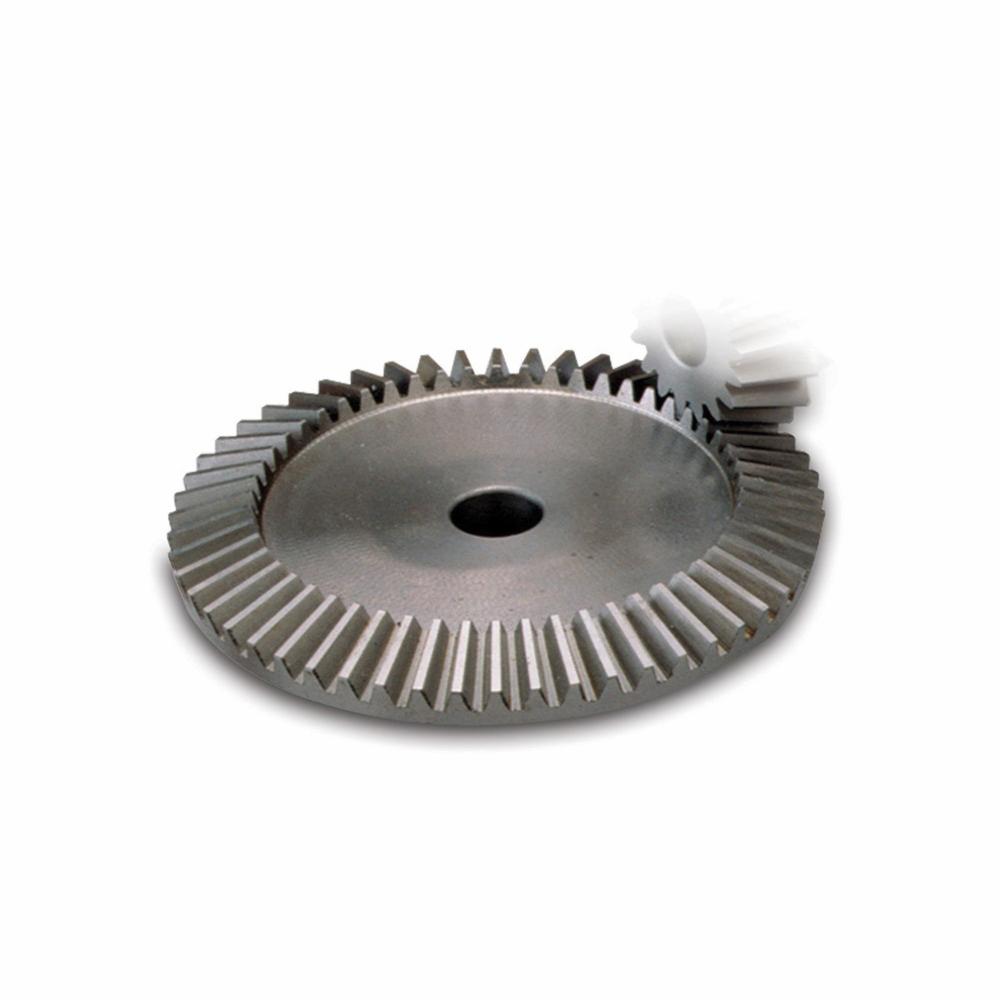

Boston Gear® L148Y-G Unhardened Straight Tooth Bevel Gear, Bevel Gear, 16 Diametral Pitch, 20 deg Pressure Angle, 24 Teeth, 1-1/2 in Dia Pitch, 0.2 in W Face, 1/2 in Dia Bore, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: L148Y-G BGW
  • MPN: L148Y-G
  • UPC: 781711122389
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.

Boston Gear® Bevel Gear, Unhardened Straight Tooth, Series: L Series, Bevel Gear, 1/2 in Bore, 1.54 in OD, 2:1 Gear Ratio, 24 Teeth, 16 Diametral Pitch, 1-1/2 in Pitch Diameter, 0.2 in Face Width, 1 in Diameter Hub, 0.44 in Hub Projection, 20 deg Pressure Angle, Steel

  • Without keyway or set screws
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_1118AF12_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_G478YG_Specification_Sheet.pdf
Standard/Approvals      :      PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
Application      :      For use with 90 deg intersecting shaft
