LEESON®

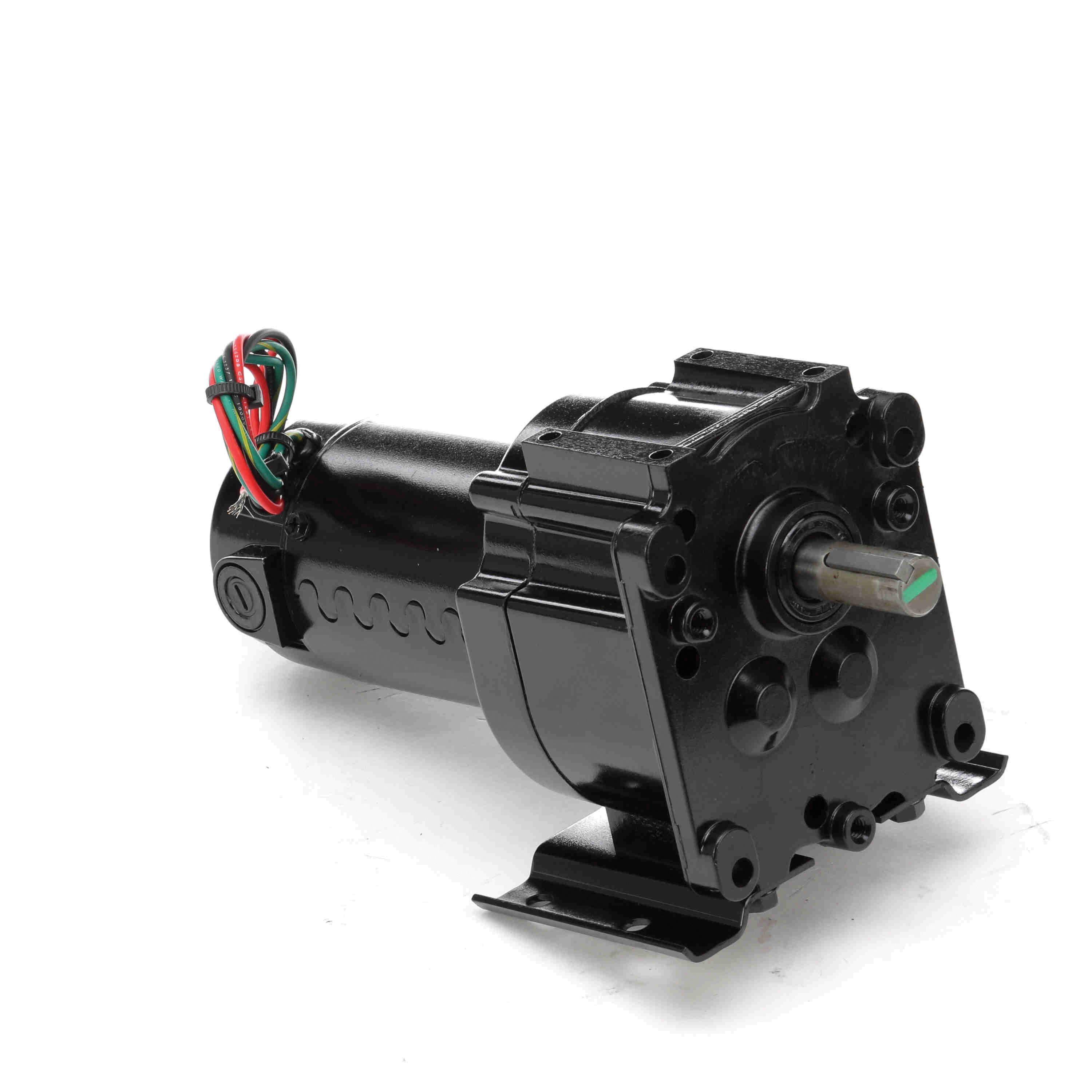

M1115026.00

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P300, 90 VDC, 0.56 A Full Load Amperage, 0.05 hp, 8 rpm Maximum, 0.63 in Shaft Dia, 1-1/2 in Shaft Length, Reversible, 150 in-lb, 103:1 Gear Ratio, Helical/Spur Gear, Ball Bearing, 385 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Steel Housing, 9.91 in L x 6.29 in H

• Precision machined in-line steel gears
• Lubrication is permanent semi-fluid grease and reducing possibility of leakage
• Output shafts have needle bearings for high load capacities
• Shafts are hardened steel
• Sub-fractional horsepower DC motors
