Gates® Power Transmission
TP1000-5M-15

Gates PowerGrip™ HTD™ Twin Power™ synchronous belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity. They have nylon facing on both tooth sides to provide equal high load carrying capabilities between the sides.

Gates® Power Transmission PowerGrip® HTD® Twin Power® Synchronous Belt, 200 Teeth, 5 mm Pitch, 1000 mm Overall Length, 15 mm Width, Neoprene, Fiberglass Reinforced Material

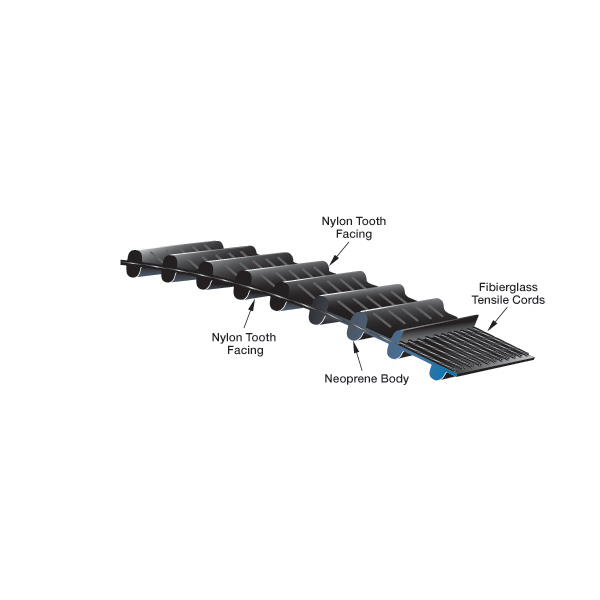

• Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
• Nylon tooth facing provides a durable wear surface for long service life
• Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
• Quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
• Neoprene body provides protection against grime, grease, oil and moisture
• Belt capacity is equal to standard single-sided PowerGrip® HTD® belts
• Twin Power® belts have teeth on both sides to provide synchronization from both driving surfaces
