Formsprag Clutch®
CL4009-1GRRH

Generally used as an indexing clutch where a compact package is desired. A snap-ring bearing must be inserted before installing. An adequate seal or cover must be provided at the open end to retain lubricant. Shaft end must be turned down and threaded to accommodate bearing and lock nut.

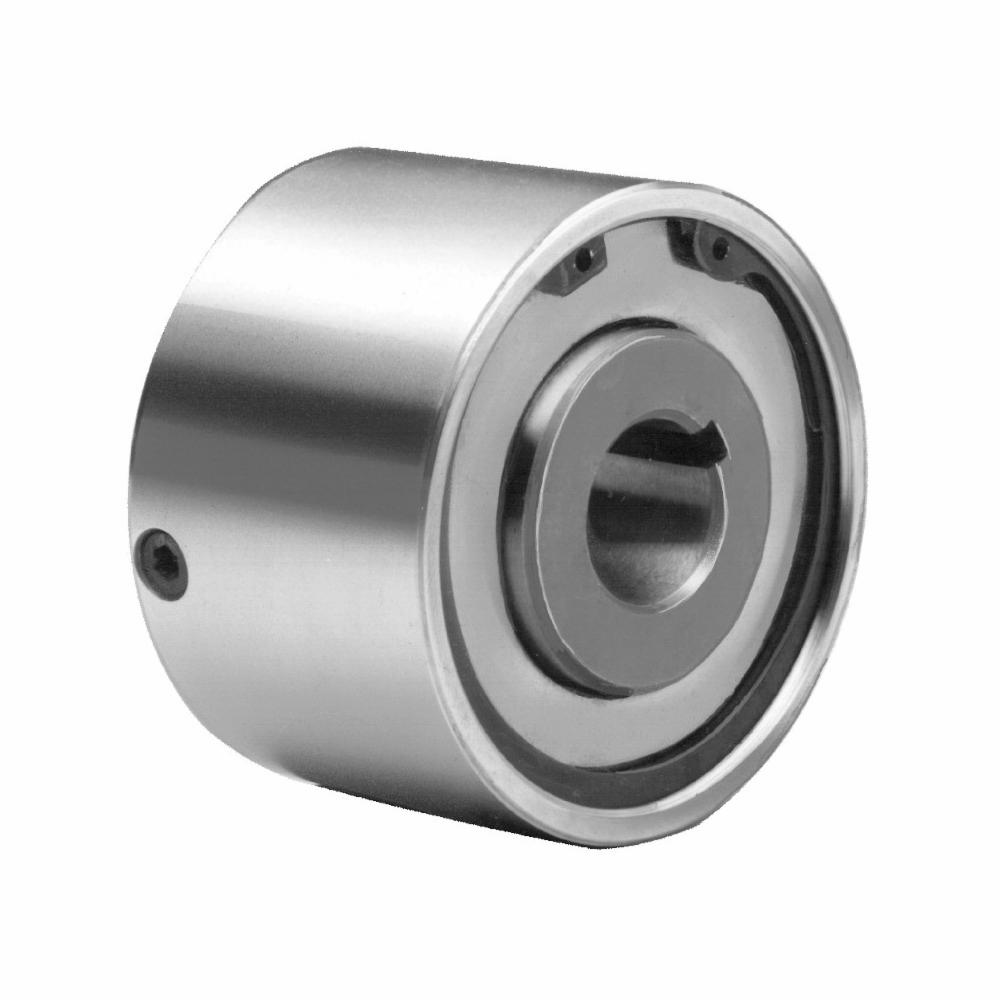

Formsprag Clutch® Formchrome® Sprag Clutch, Series: FS-200, 1 in Bore, 3.562 in OD, 2.281 in Overall Length, 230 ft-lb Torque, 1800 rpm Inner/450 rpm Outer Race Maximum, 4-Bolt Vertical Mounting

• External bearing support required
• Formsprag Clutch® recommends the use of our HPI series for indexing rates in excess of 150 strokes per minute or indexing angles in excess of 90 deg
• Right hand rotation
