Timken®
RAK1 11/16 NT

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.

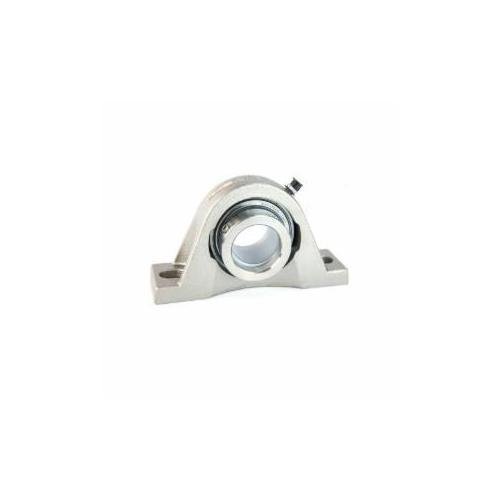

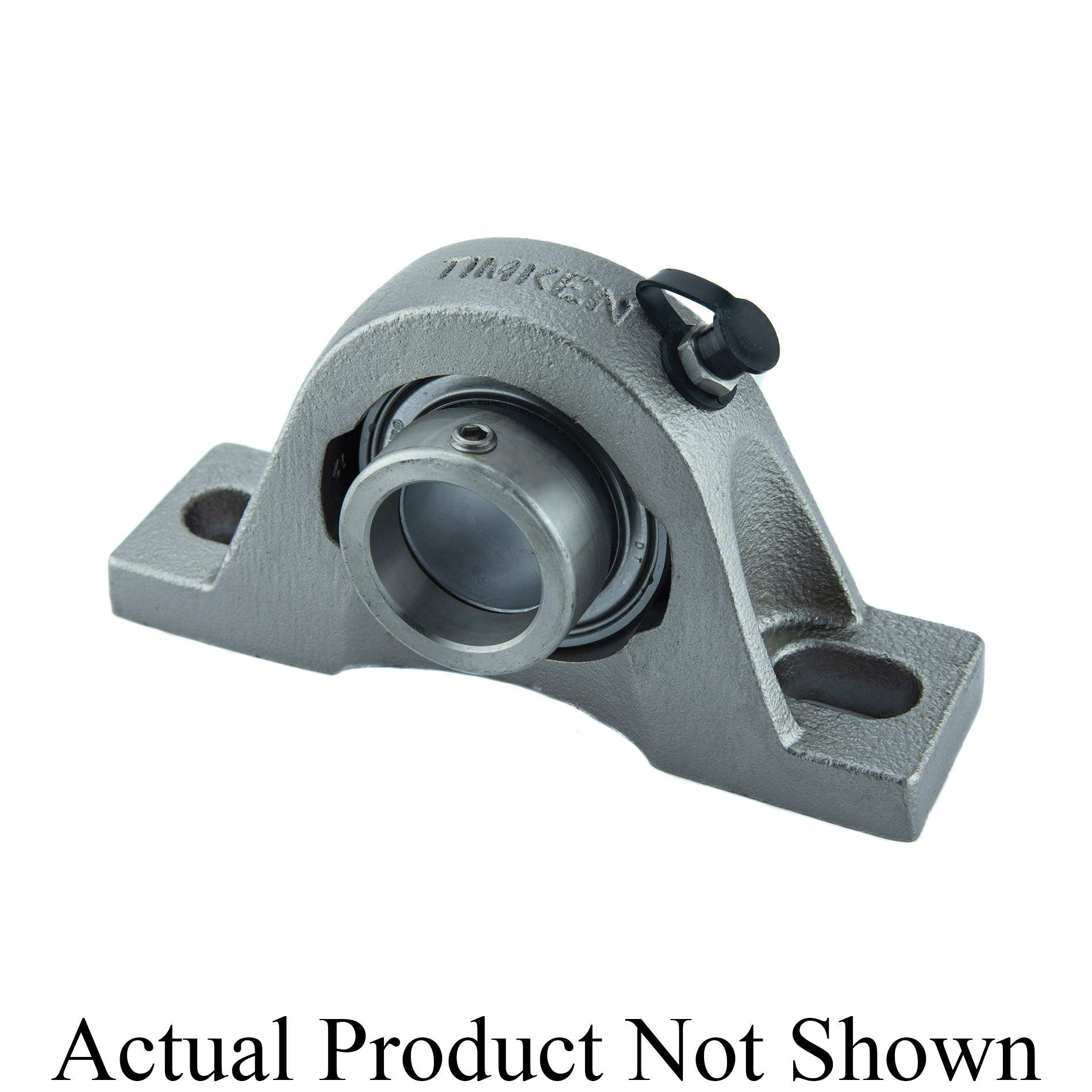

Timken®, RAK1 11/16 NT, Pillow Block Ball Bearing Unit, Normal Duty, Series: RAK, 1-11/16 in Bore, 5-7/8 in Bolt Center-to-Center Length, 2-1/16 in Base to Bore Centerline, 7-17/32 in Overall Length, 2-7/32 in Overall Width, 4-1/8 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/16 in Base Width, Eccentric Locking Device, Contact Seal, Non-Expansion (Fixed), 7350 lb Dynamic/4600 lb Static Load, 250 deg F, Cast Iron, Nickel Plated

• Heavier than our standard block with solid, flat feet for increased strength
• Compact, one-piece housing can be mounted in any position
• Pillow blocks self-align at mounting with the spherical outside diameter of the bearing fitting into the corresponding spherical housing seat
• Pre-lubricated and ready for immediate installation
• Grease fitting for relubrication
• All units are supplied with corrosion-resistant G-KRRB ball bearing and locking collar
• RAK pillow block is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
