Sealmaster®
1540500000

Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

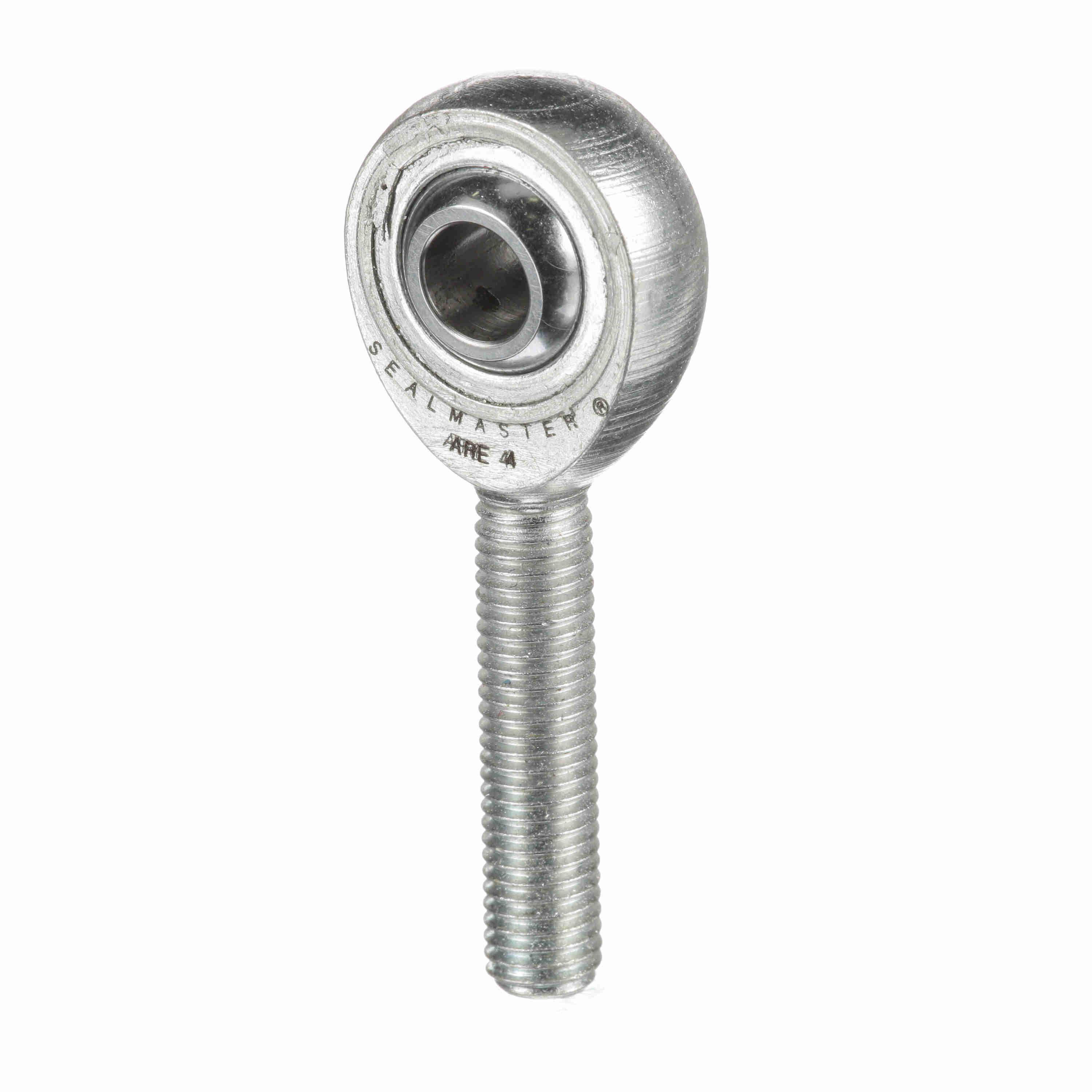

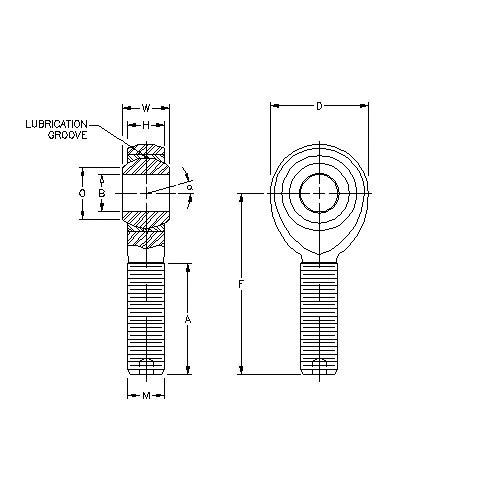

Sealmaster® Bearing Rod End, 3-Piece Precision Grade Extra Capacity, Series: ARE, 5/16 in Bore, 7/8 in OD, 0.437 in Width, Male UNF Thread, 5/16-24 Dia x 1.219 in L Thread, 1-7/8 in Center Line Length, 7280 lb Static Load, 350 deg F, Alloy Steel

• 3-piece design rod ends with heat treated alloy steel housing for high static and radial loads
• 1-piece carbon steel outer race with protective coating for corrosion resistance
• Alloy steel heat treated and chrome plated ball for wear resistance properties
• The construction also helps reduce pound-out in applications with high frequency oscillation, vibration or shock loading
• Left hand external thread
• 4130 alloy steel heat treated corrosion resistant plating outer

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_1410308000_Catalog.pdf
