Littelfuse®
LFJ60030-3CID

The Littelfuse® 600 VAC class J blocks offer generous space savings and enhanced value Over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.

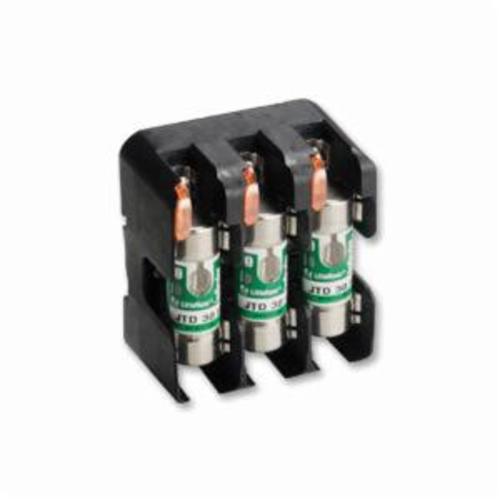

Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFJ, 600 VAC, 30 A, 3 Pole, Class: J, Box Lug, 22 to 10 AWG Wire, DIN Rail Mount, 2.252 in Fuse Length, 0.81 in Fuse Dia, 125 deg C, For Use With: JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse, Thermoplastic, 3.84 in L x 3.25 in W x 1.95 in H

• Space saving design up to 45% smaller than existing blocks
• Universal mounting holes for easy replacement
• Only 1-hand is required to release from DIN rail (lock open lock closed)
• Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocks
• <0.6 mA at 600 VAC leakage current
• Lead (Pb) free
• Phenolic blocks have side barriers for isolation
• Indication offered on all versions except 200 to 600 A
• DIN rail releasable for all non-knife blade style fuses
• Covers available for 100 a and lower to enhance safety

• Specification S... https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_81be9db2dec75ec83dfcae353f9e00be41e65d99be33e6063e15550a968ef4c0.pdf
