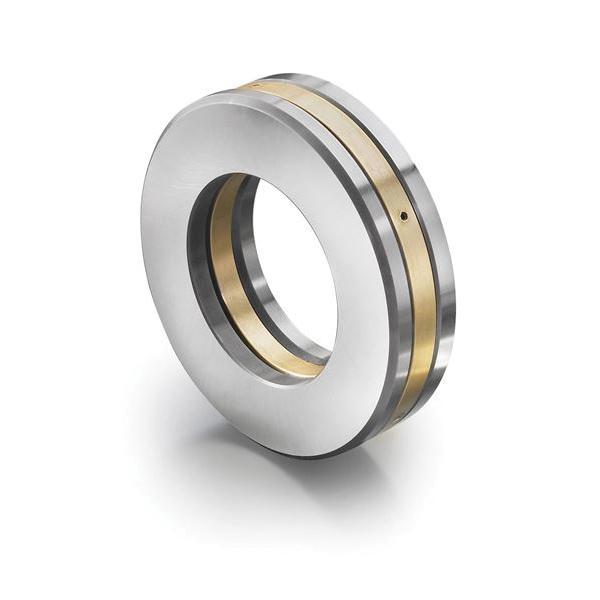

RBC® TP626 TP Series Heavy Duty Cylindrical Roller Thrust Bearing, 3-1/2 in Dia Bore, 5-7/32 in OD, 1 Row, 1 in W, 120273 lb Load

  • Manufacturer: RBC Bearings Incorporated
  • Brand: RBC®
  • BSC Item#: TP626 RBC
  • MPN: TP626
  • UPC: 637401443176
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

RBC® produces an extensive range of standard cylindrical roller thrust bearings from 3.5 in (8.9 mm) bore to 34 in (863.6 mm) OD. These bearings are ideal for heavy loads requiring moderate speeds. The TP type thrust bearings are cost efficient and several sizes are readily available from inventory. They comprise two hardened and ground steel washers, a machined brass cage and steel rollers.

RBC® Cylindrical Roller Thrust Bearing, Heavy Duty, Series: TP Series, 3-1/2 in Bore Dia, 5-7/32 in Outside Dia, 1 Row, 1 in Width, 1 Thrust Direction, 120273 lb, Hardened Steel Bearing

  • Fully interchangeable with industry standard offering
  • High capacity version
  • 34845 lb dynamic/120273 lb static
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RBC_TP514_Catalog.pdf
Standard/Approvals      :      ABMA 21.2|ASPR|CAS|DFAR|FAR Standards
Application      :      Crane Hooks, Rolling Mills, Oil Well Swivels, Cone Pumps, Gear Boxes, Winch Systems, Cone Crushers, Pumps, Bridge and Trolley Drives
