Browning® 1113430 41A84
Send NoImagePrint
  1. pin-int

Browning®
1113430

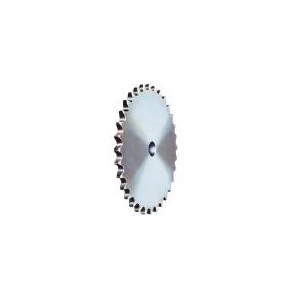

Browning® 1113430 Single Strand Plate Type A Roller Chain Sprocket, 23/32 in Dia Bore, 13.66 in OD, #41 Chain, 84 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 41A84
  • MPN: 1113430
  • UPC: 662289532131
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® Roller Chain Sprocket, Single Strand Plate Type A, 23/32 in Bore, 13.66 in OD, #41 Chain, 84 Teeth, 1/2 in Pitch, 13.372 in Pitch Diameter, 0.226 in Length Through Bore, Steel

  • Solid plate
  • No hub projection
  • High quality, high carbon steel
  • Browning® offers type A plate steel sprockets in single strands
  • Lasts longer than sprockets made from low carbon steel
  • For use with 1/2 in pitch ANSI chain
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_41A15_Specification_Sheet.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
