Browning®
1229210

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

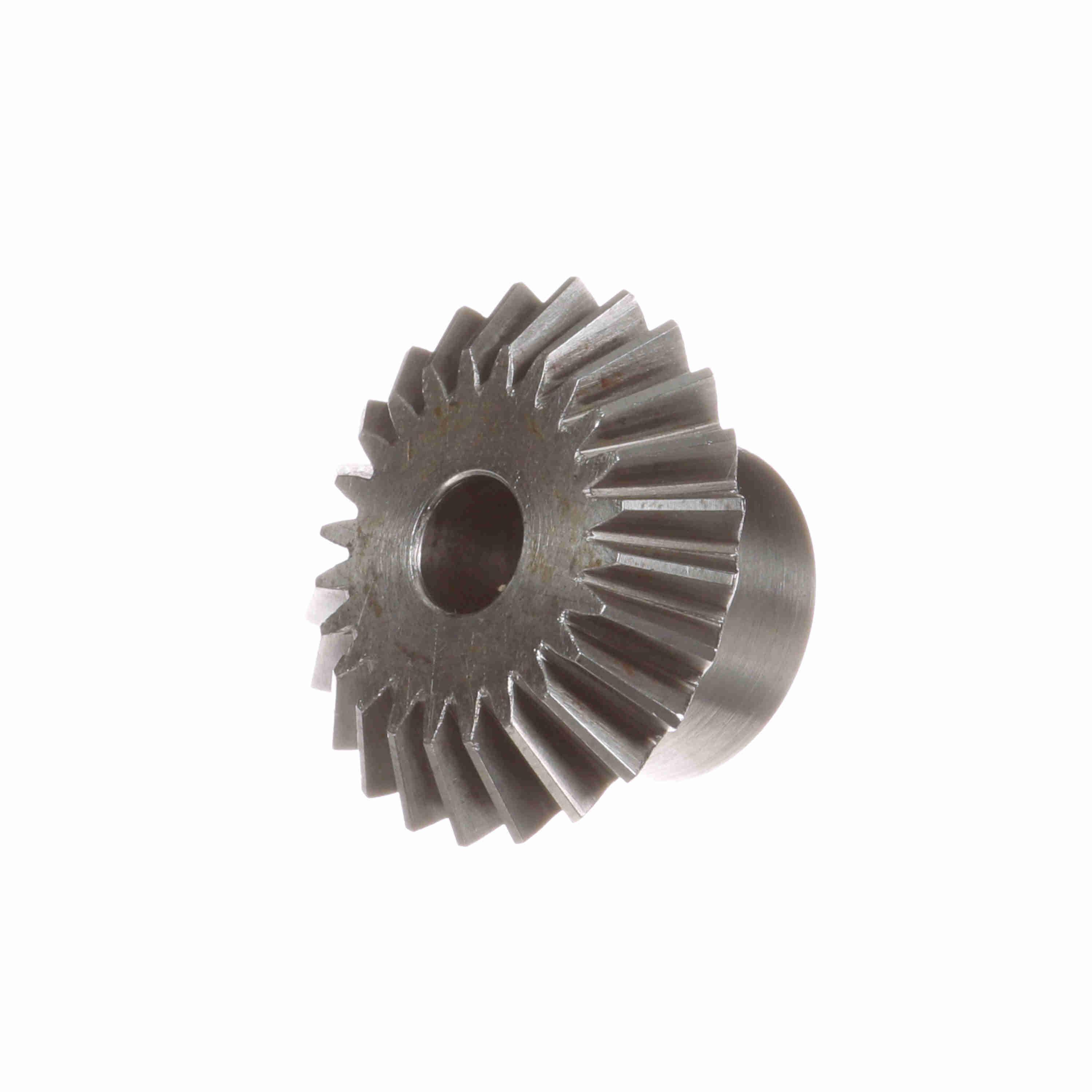

Browning® Miter Gear, Minimum Plain Bore Straight Tooth, 1/2 to 5/8 in Bore, 1:1 Gear Ratio, 24 Teeth, 12 Diametral Pitch, 2 in Pitch Diameter, 0.43 in Face Width, 1.313 in Diameter Hub, 11/16 in Hub Projection, 1-7/32 in Overall Length, 20 deg Pressure Angle, Unhardened Steel

• Browning Gears are rated in accordance with AGMA standards
• Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
• Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
• Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided

• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_YSB20B1020_Catalog.pdf
