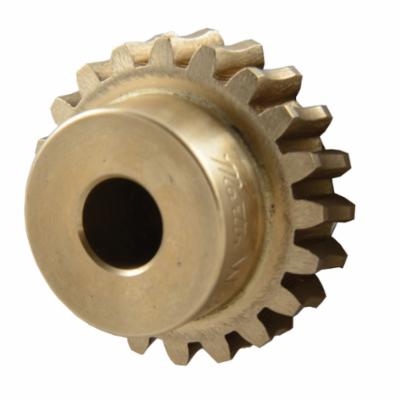

Martin W1220Q
Martin W1220Q Plain Reborable Worm Gear, 12 Diametral Pitch, 14.5 deg Pressure Angle, Quadruple Threads, Right Hand Rotation, 20 Teeth, 1.666 in Dia Pitch, 0.5 to 0.626 in Dia Bore, 1/2 in W Face, Cast Iron
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: W1220Q MART
- MPN: W1220Q
- UPC: 697950060156
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Martin Worm Gear, Plain Reborable, 0.5 to 0.626 in Bore Dia, 1.853 in Outside Dia, Quadruple Number of Threads, 20 Teeth, 12 Diametral Pitch, 1.666 in, 1/2 in Face Width, Right Hand Direction of Rotation, 1-1/4 in Hub Dia, 1/2 in Hub Projection, 1 in Overall Length, 14.5 deg Pressure Angle, Cast Iron
- Commercial Class Gear. AGMA 6-8
