LEESON®
M1125080.00

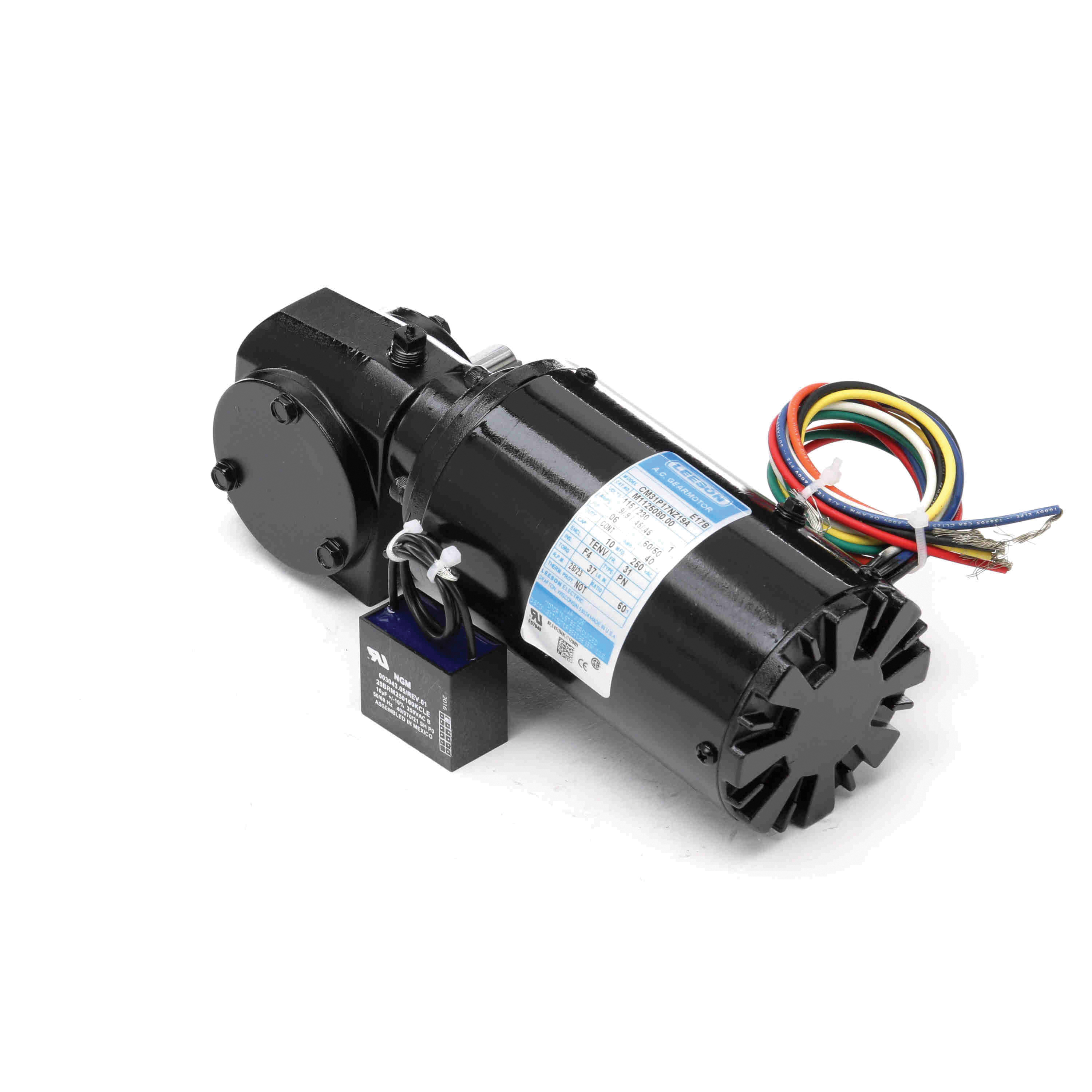

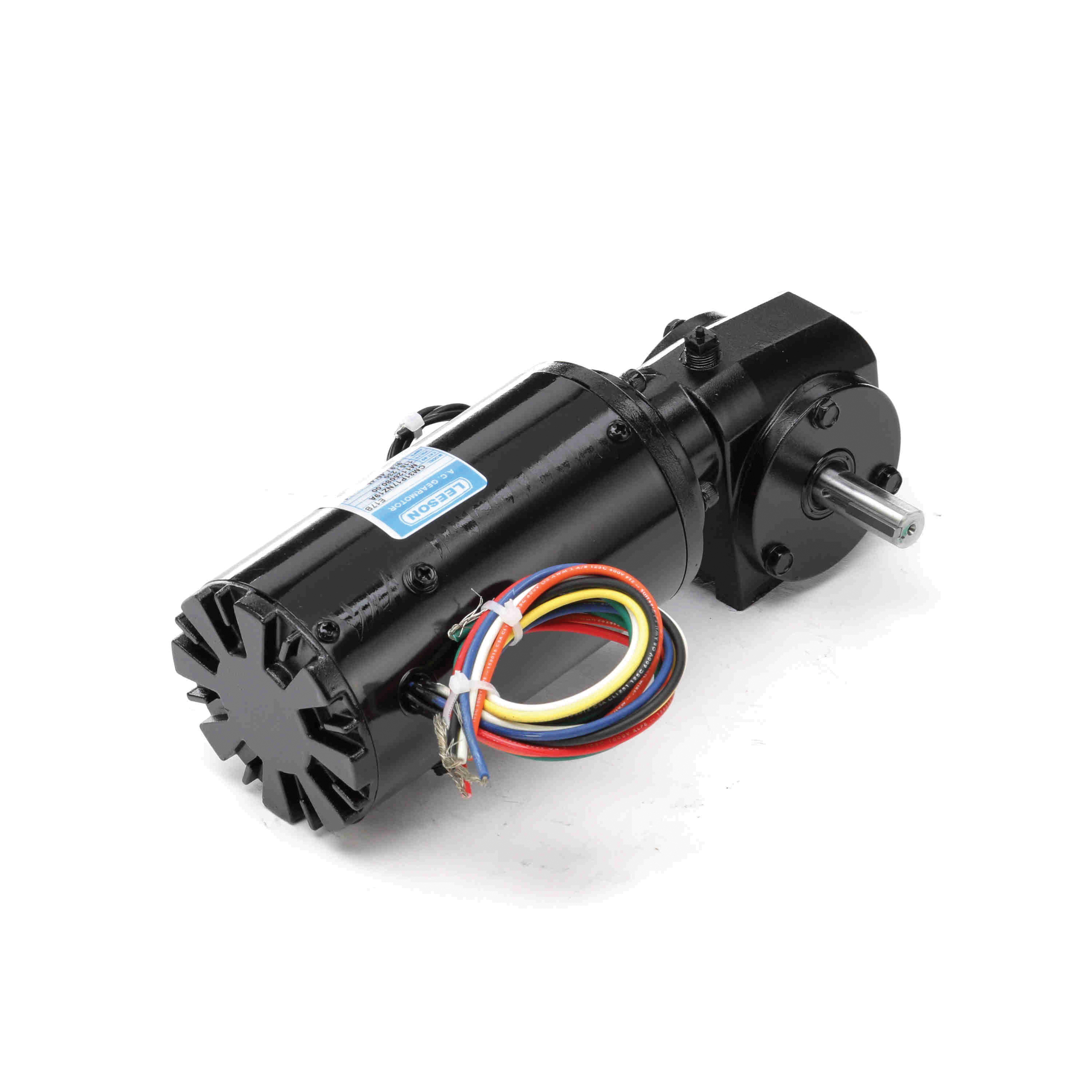

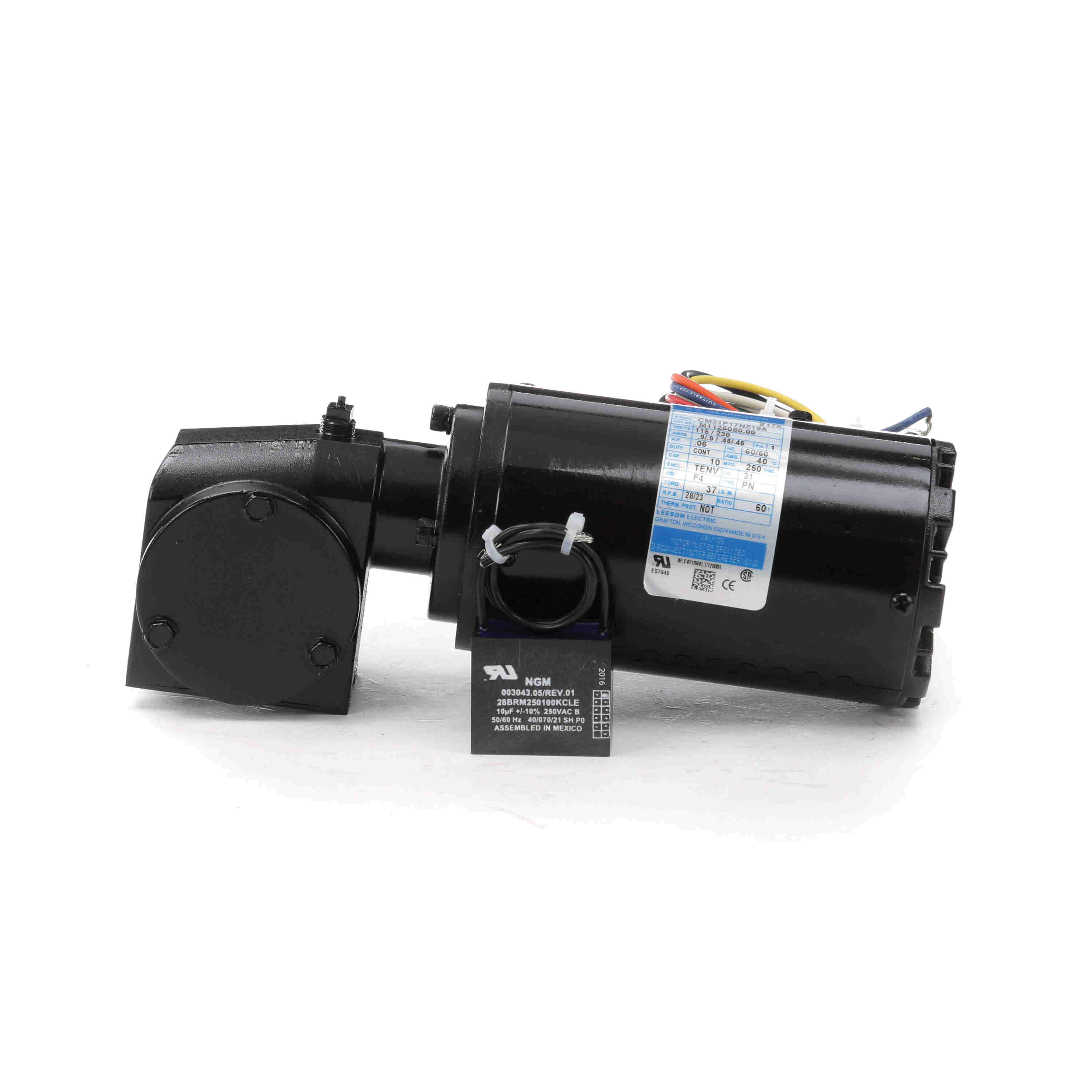

LEESON® Gear Motor, Right Angle Continuous Duty, 115/230 VAC, 0.9/0.45 A Full Load Amperage, 0.06 hp, 60 Hz, 1, 28 rpm Maximum, 1/2 in Shaft Dia, 3.63 in Shaft Length, Reversible, 37 in-lb, 60:1 Gear Ratio, Worm Gear, Permanent Split Capacitor Motor, Ball Bearing, 185 lb Overhung Load, Special Mount, 40 deg C, Class F Insulation, Totally Enclosed Nonvented (TENV), Aluminum Housing, 8.94 in L x 4.95 in W x 3.84 in H

• Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
• Lubrication is permanent with an oil bath
• Output shaft is field interchangeable from left hand to right hand style by reassembly

• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Warranty.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leeson_M112508000_Specification_Sheet.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3203ZZC3_Manual.pdf
